The Discover MAC List contains the MAC address that must be used to create a VLAN group.

Follow the steps to define the Discover MAC List:

1.Log in to the Domain Management page.

2.Click and select Fine Tune.

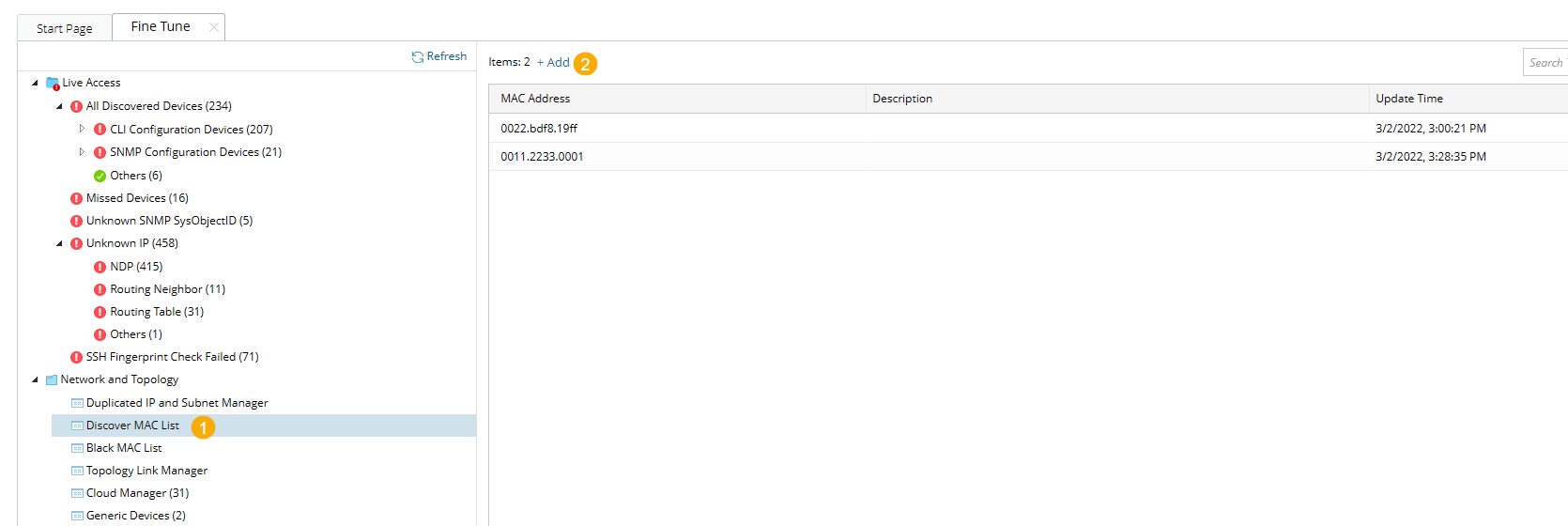

3.Under Network and Topology folder, click Discover MAC List.

4.Click Add to add the MAC address.

Tips:

1.You can merge couple VLAN Groups into a single VLAN Group by adding their MAC addresses into Discover MAC List.

2.Please be careful when you are configuring Discover MAC List since this may have great impact on Topology calculation.
