After Follow-up Network Intents are defined, you can browse the Diagnosis Tree (Pre-Execution) of home NI to view the entire multi-staging diagnosis design, which consists of :

▪Home Network Intent

▪All Network Intent Diagnosis

▪All Follow-up Intents

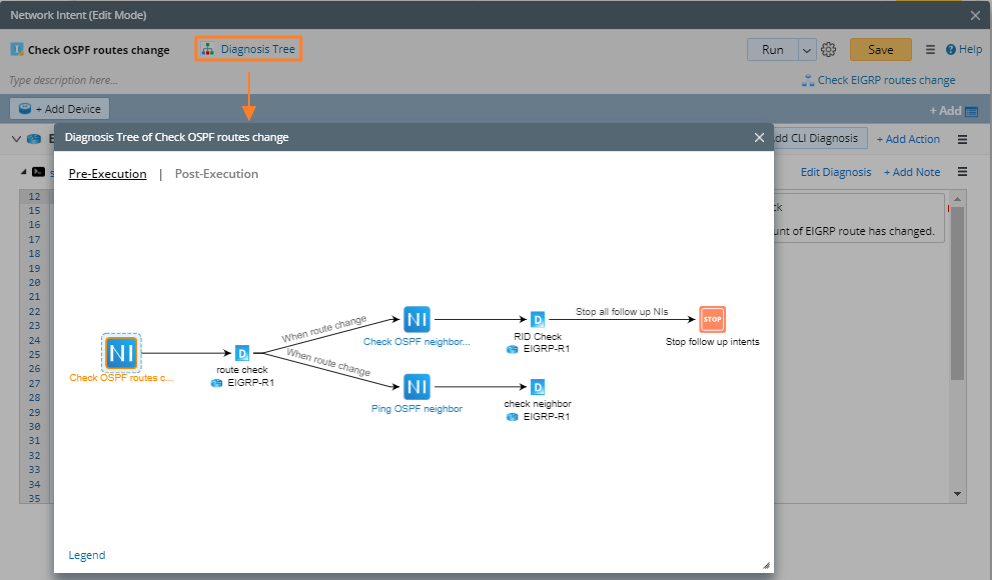

1.Go back to the Network Intent Edit Mode, and click Diagnosis Tree to open it.

2.You can only view the Diagnosis Tree in Pre-Execution mode before the Follow-up diagnosis is executed.

3.View the description and message you defined in Follow-up Network Intent.

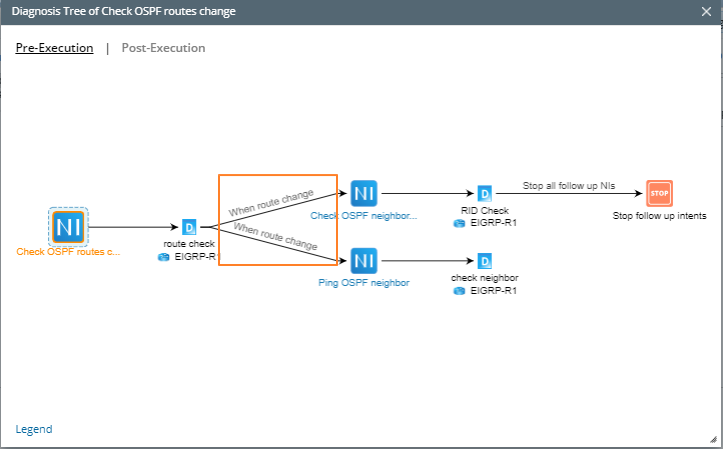

Display Logic of the Diagnosis Tree (Pre-Execution)

The display logic of the Diagnosis Tree (Pre-Execution) is as follows:

▪An NI can have multiple diagnoses, and each Diagnosis generates a diagnosis node. These diagnosis nodes are always displayed regardless of whether the follow-up Network Intent is defined in the Diagnosis.

▪Follow-up Network Intents or Stop nodes defined in each Diagnosis are displayed in parallel on different branches.

▪You can drag the selected node and zoom in/out to view the tree.

▪The Post-Execution mode is not available before this Network Intent is executed.
