You can define the details of alerts.

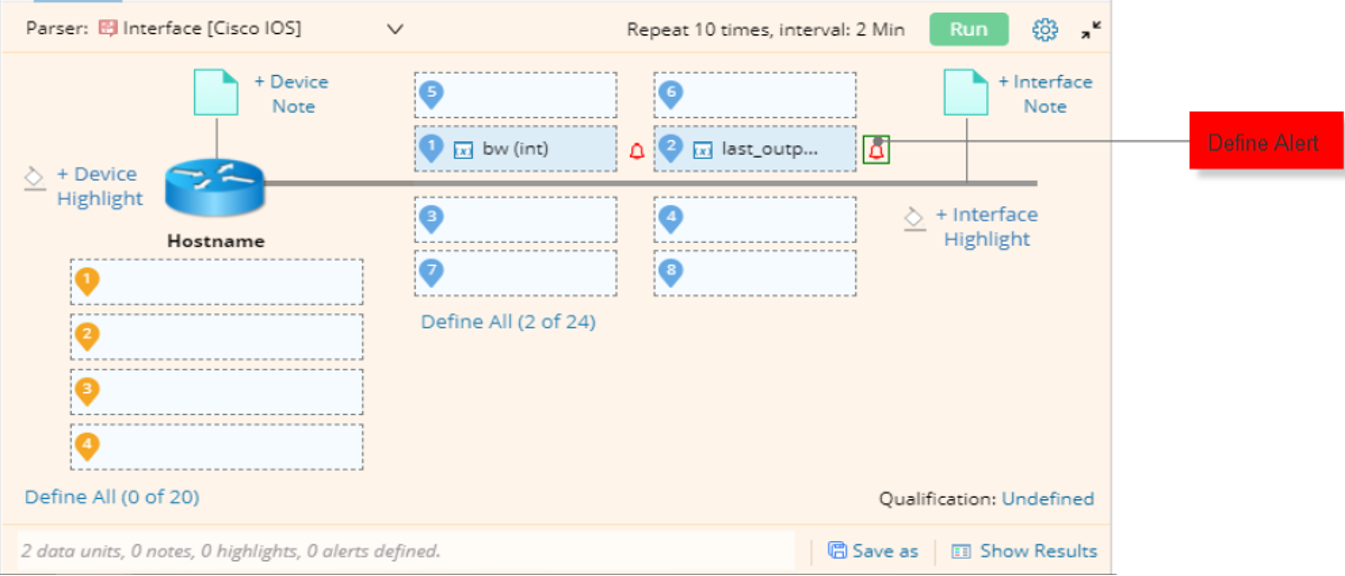

The entrances of defining alert:

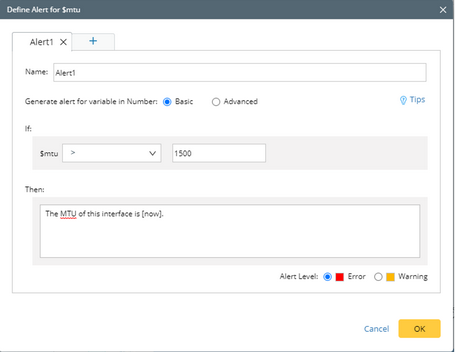

The Define Alert Dialog:

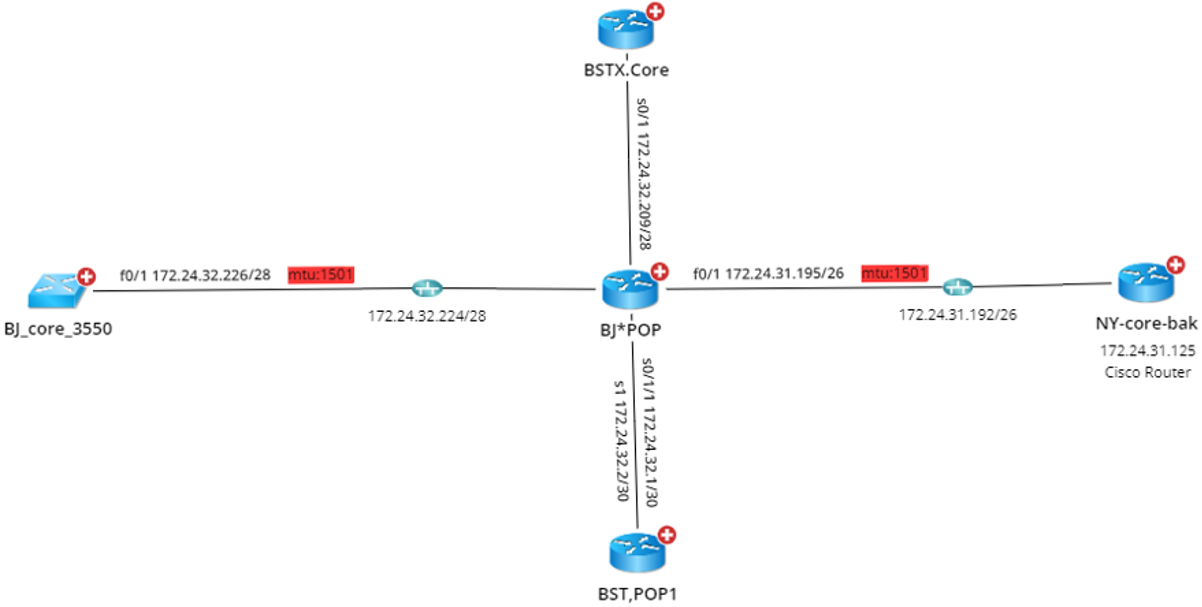

With the above alert definition, the “mtu” data unit shown on the map will be highlighted if the specified condition matched:

▪Provide different variable analysis operations according to different variable types.

▪Optimize the definition of condition in the ‘If’ statement to make it closer to natural language and easier to understand.

▪Support more methods for different types of variables in ‘Operation’ and expand the range of cases covered by alert.

The list of operations supported by the three types of string, number, and bool are as follows:

Variable Type

Operation

Grammar

String

contains

$var1 (contains) ____.

String

does not contain

$var1 (does not contain) ____.

String

equals

$var1 (equals) ____.

String

does not equal

$var1 (does not equal) ____.

String

starts with

$var1 (starts with) ____.

String

has changed

$var1 (has changed) from the last result.

String

has not changed

$var1 (has not changed) from the last result.

String

is flapping

$var1 (is flapping).  __ changes in last __ sampling.

number

==

$num1 (==) __

number

!=

$num1 (!=) __

number

<

$num1 (<) __

number

<=

$num1 (<=) __

number

>

$num1 (>) __

number

>=

$num1 (>=) __

number

is in the range

$num1 (is in the range of) __.

number

is out of the range

$num1 (is out of the range) __.

number

has changed

$num1 (has changed) from the last result.

number

has not changed

$num1 (has not changed) from the last result.

number

is flapping

$num1 (is flapping).  __ changes in last __ sampling.

number

is increasing

$num1 (is increasing) in last __ sampling.

number

is decreasing

$num1 (is decreasing) in last __ sampling.

number

delta

$num1 (delta) (>). (PS. [delta] = [now] - [last])

number

abs(delta)

$num1 (abs(delat)) (>). (PS. Abs(delta) means rangeability)

bool

equals

$var1 (equals) ____.

bool

does not equal

$var1 (does not equal) ____.

bool

has changed

$var1 (has changed) from the last result.

bool

has not changed

$var1 (has not changed) from the last result.

bool

is flapping

$var1 (is flapping).  __ changes in last __ sampling.

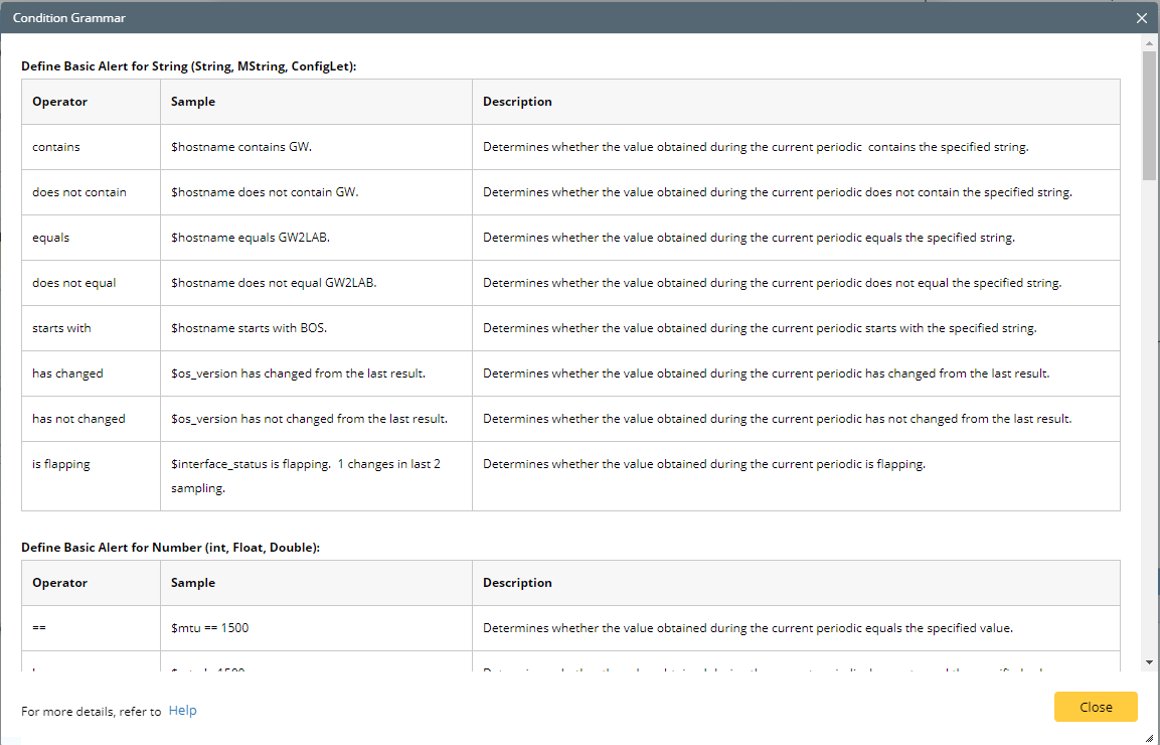

▪Added tip to help users understand special syntax and operators.
