In the system, links in different topology types can be shown on the same map page. To cohere with link styles, there are two device styles provided:

▪Compact Style — suitable for Layer 3 topology.

Tip: When you create a map from scratch, the involved devices are displayed in the Compact Style by default.

▪Expanded Style — suitable for Layer 2 topology.

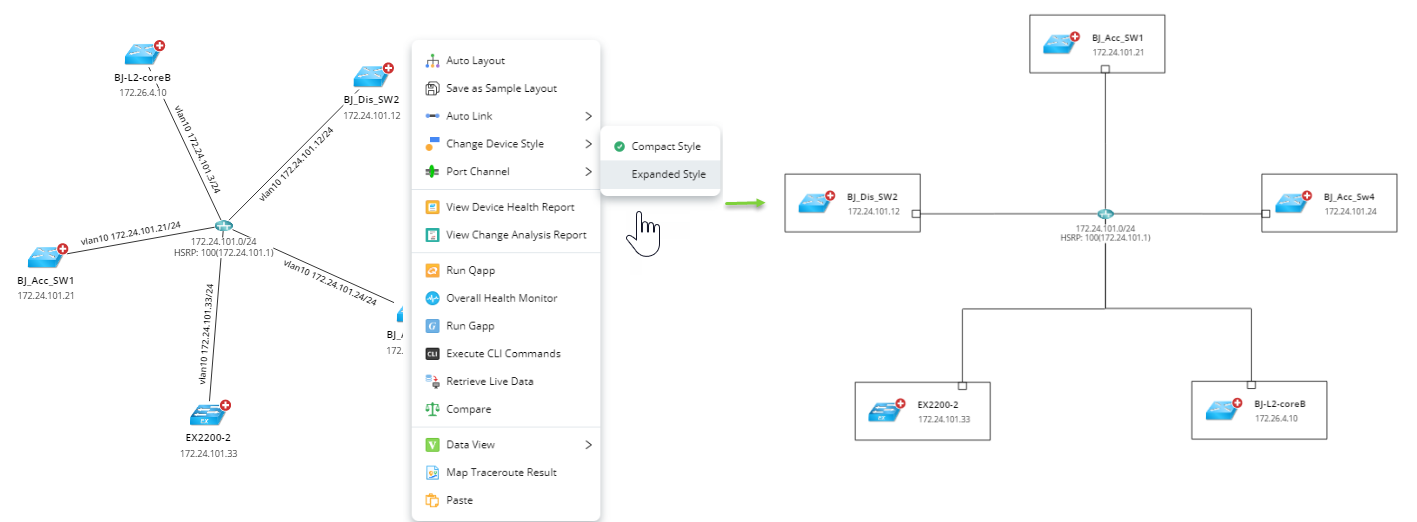

To switch to the Expanded Style for all devices, you can right-click the blank area on the map, and select Change Device Style > Expanded Style from the drop-down menu as follows:

To switch a selected device to the Expanded Style, you can right click the device and select Change Device Style > Expanded Style.

Tip: In the Expanded Style, you can point to a port or click a link, to view its detailed information.

Tip: By default, all devices on the expanded style are diagrammed with borders as shown in the above screenshot. To change the device view, click Map > Map Settings in the map toolbar.
