Viewing Dynamic Maps through Function Portal

The function portal can map the shared network to get instant visibility. To view more data, you can apply a data view to the devices on the map.

1.Expand the map tree in the left pane.

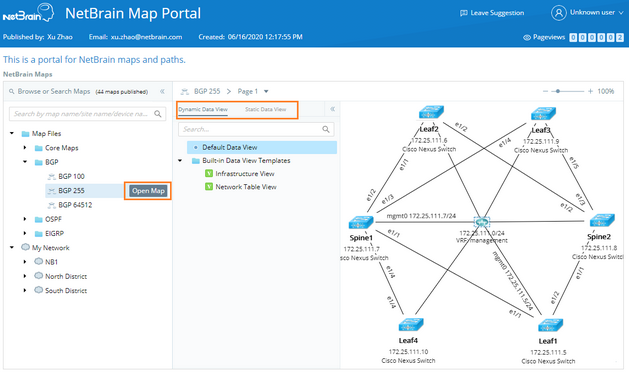

2.Point to the target map and click Open Map to display it in the working area. The Data View pane expands automatically.

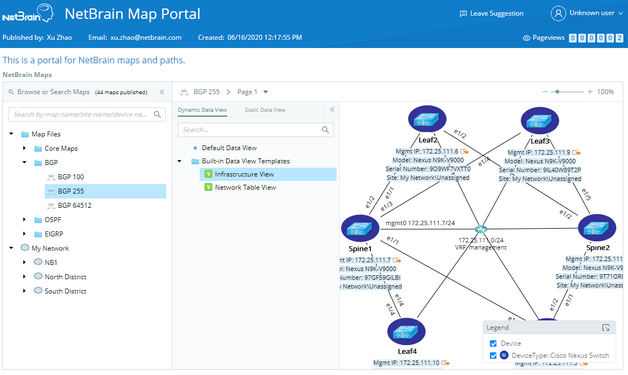

3.Select a data view among those qualified ones to apply to the map.

Note: The data source for applying a data view is the current baseline (the latest data saved in the IE system).
