Assigning a Proxy Server to a Front Server

Each Front Server can only support one Proxy Server. There are two ways to assign the Proxy Server to the Front Server:

Option 1:

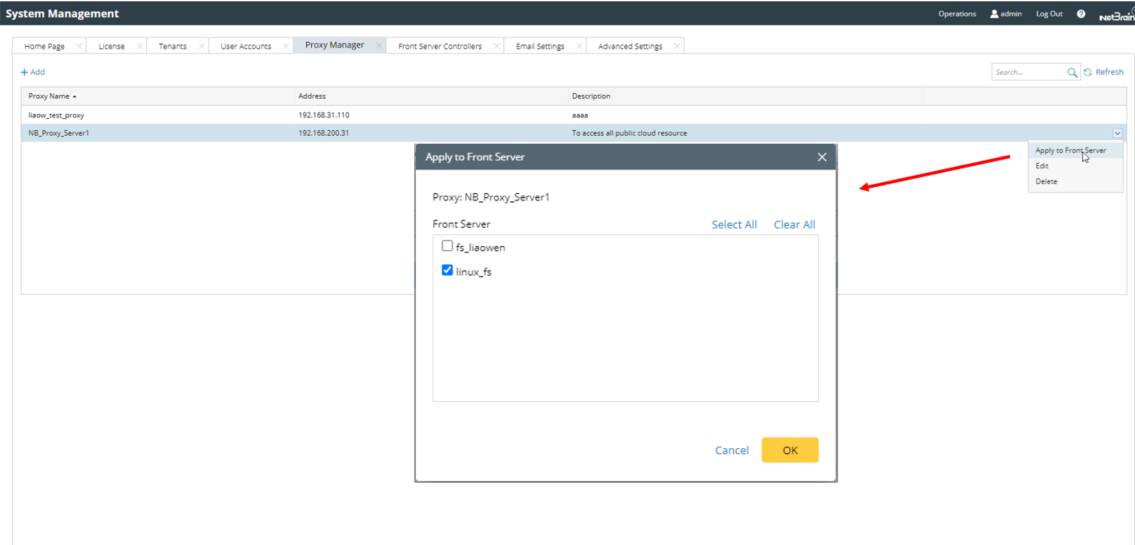

1.Navigate to System Management > Proxy Manger.

2.Click the downward arrow aside the desired Proxy Server and select Apply to Front Server.

3.In the Apply to Front Server window, select the desired Front Server.

4.Click OK to assign the Proxy Server to the Front Server.

Note: Only the Front Servers of which the registered status is Yes are allowed to be assigned with a Proxy Server.

Tip: You can apply a Proxy Server to one or more Front Servers at the same time.

Option 2:

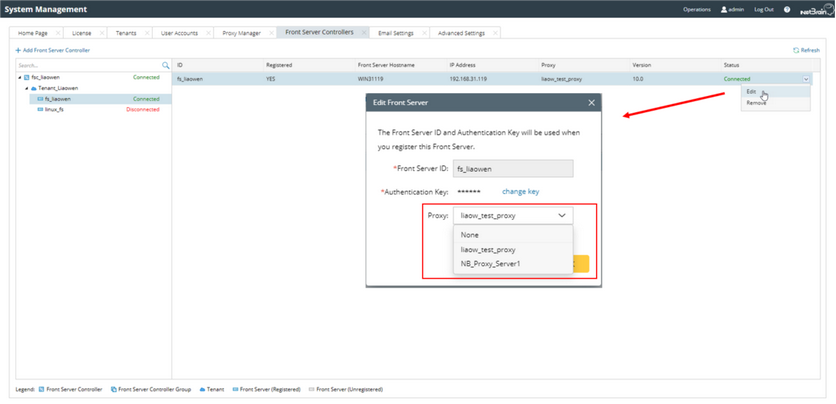

1.Navigate to System Management > Front Server Controllers.

2.Click the downward arrow aside the desired Front Server and select Edit.

3.In the Edit Front Server window, add, modify, or delete the Proxy Server according to your needs.

4.Click OK to apply the above changes.
