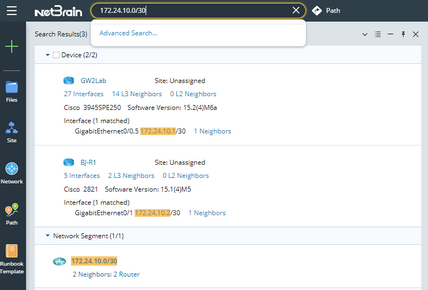

1.Enter a subnet in the search bar. For instance, 172.24.10.0/30.

2.Press the Enter key on your keyboard to start searching. The devices with interfaces in this segment are listed in the search results.

3.Click the hyperlink (2 neighbors: 2 Routers in this sample) in the network segment result to preview the topology of the network segment and the devices in the segment.

Tip: To draw the network segment icon on a map, point to a network segment result and click Map. Moreover, right-click the network segment icon on the map for more operations.

4.Click Add to Current Map or Open in New Map to map the previewed topology.
