NetBrain Smart CLI is supported on the following Windows operating systems. You can also install NetBrain API Server and Smart CLI on the same Windows server.

▪Windows 7 (Enterprise32/Professional/Enterprise/Ultimate Edition)

▪Windows 10 (Business/Enterprise Edition)

▪Windows Server 2012 (Standard/Datacenter Edition)

▪Windows Server 2012 R2 (Standard/Datacenter Edition)

▪Windows Server 2016 (Standard/Datacenter Edition)

▪Windows Server 2019 (Standard/Datacenter Edition)

Note: NetBrain Smart CLI is not supported on Education version for both Windows 7 and Windows 10.

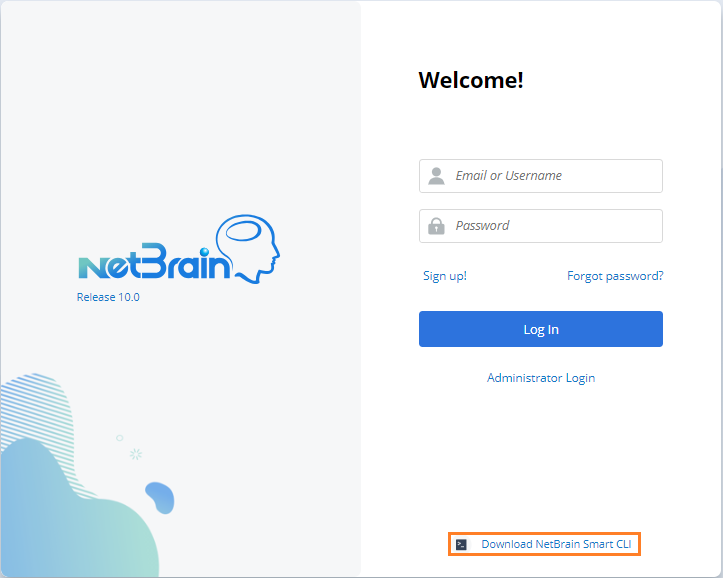

1.Download the Smart CLI installation package from NetBrain login page to a local directory.

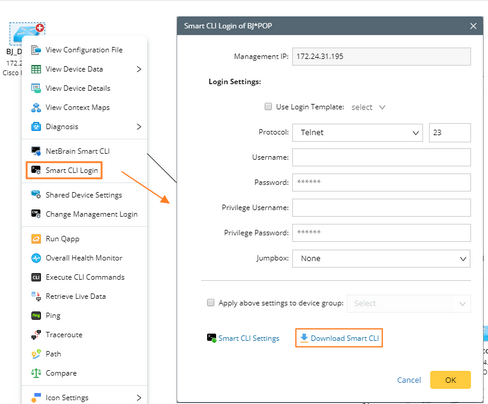

Tip: You can also download the Smart CLI installation package from the system's main UI or by right-clicking a device on a map.

2.Extract installation files from the netbrain-smartcli-windows-x86_64-10.0.zip file.

3.Right-click the netbrain-smartcli-windows-x86_64-10.0.exe file, and then select Run as administrator to launch the Installation Wizard.

1)On the Welcome page, click Next.

2)On the System Configuration page, review the system configuration summary, and click Next.

3)On the License Agreement page, read the license agreements, and then select the check box. Click I ACCEPT.

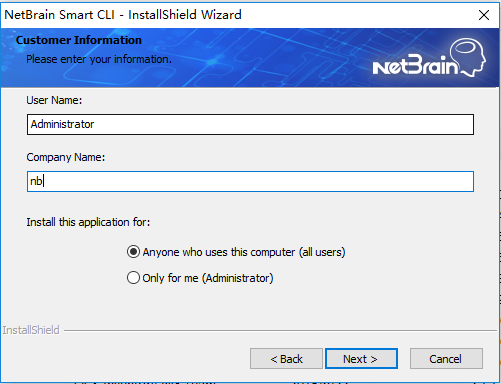

4)On the Customer Information page, enter your company name, and specify the target users who can run the Smart CLI application after the installation, and then click Next.

Tip: To make the application only available for the administrator, click Only for me (Administrator).

5)On the Destination Location page, click Next to install Smart CLI under the default directory C:\Program Files\NetBrain\. If you want to install it under another location, click Change.

6)Keep the Create desktop shortcuts check box selected to create a shortcut on your desktop to quickly launch Smart CLI, and then click Next.

7)Review the summary of the installation settings and click Install.

4.After Smart CLI is successfully installed, click Finish to complete the installation process and exit the Installation Wizard.
