1.Click next to the Flash Probe.

2.In the Triggered Automation Details window, click +Add Network Intent

Note: Only Network Intent is currently supported to be installed as triggered automation.

3.Select the desired Network Intent from the list.

4.Define the notes to explain the purpose of the Network Intent. The notes will be displayed above the arrow link between Flash Probe and Network Intent in the Decision Tree.

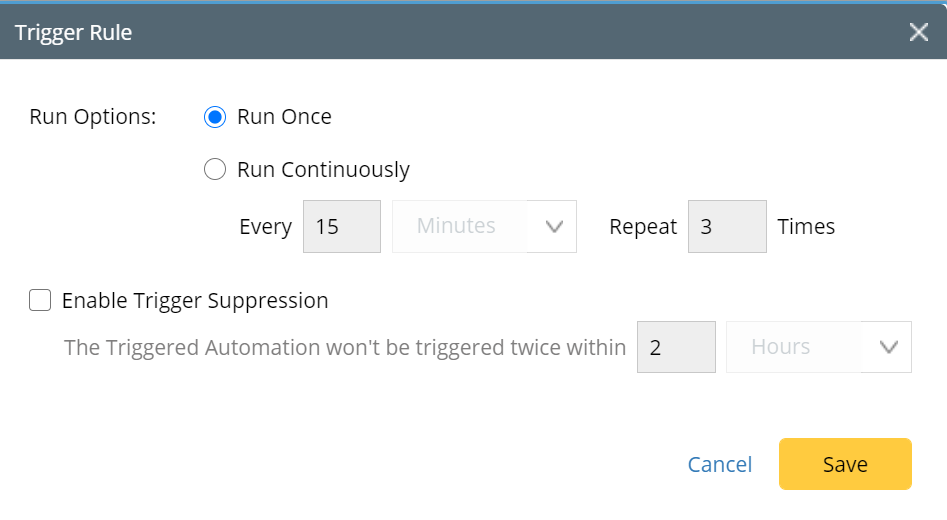

5.Define triggered rule.

oThe Network Intent can be configured to run once (default) or run continuously.

oTrigger suppression can be enabled to avoid multiple automation being triggered in a short time interval. After Trigger Suppression is enabled, the Network Intent will only be triggered once during the defined time interval. The Timer Flash Probe would not be affected by this option.

6.Once the steps above are completed, the relationship will be displayed accordingly in the Decision Tree.
