If-condition
Contents
The If-condition node is a decision node, representing a test on the variables of a global data table from the Table Input or from the previous Canvas node. Different branches will be executed after the If-condition node depending on the test result (true or false).
Defining the If-condition Node
1.In the Qapp Editor, extend an If-condition node first under the Execution Flow tab.
2.Click the
icon on the If-condition node. The following dialog prompts.
3.Select a node for True and select another one for False individually. Click Extend.

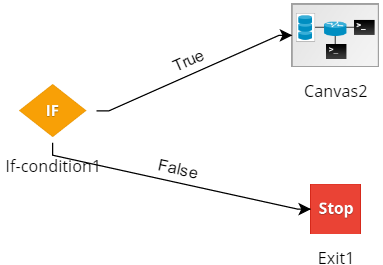

This is a sample workflow:

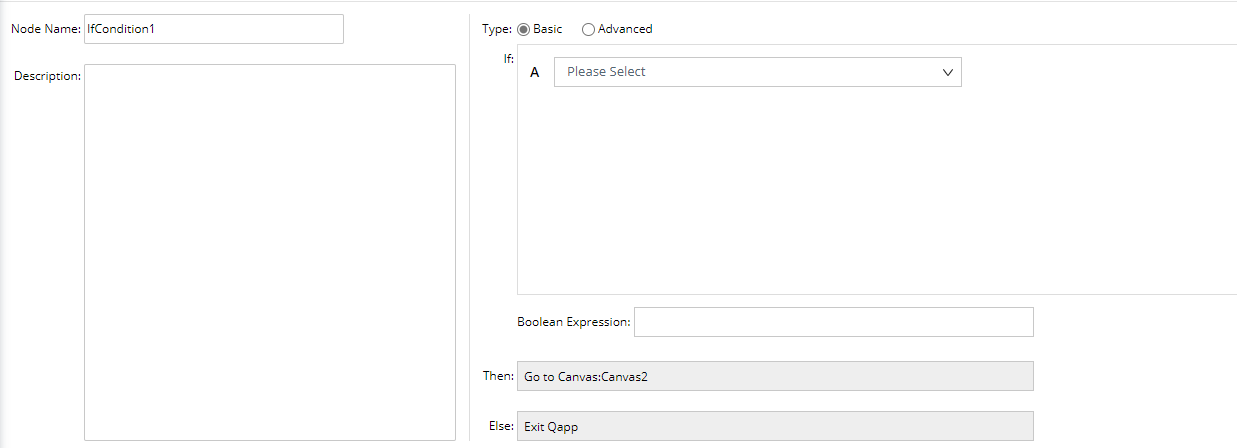

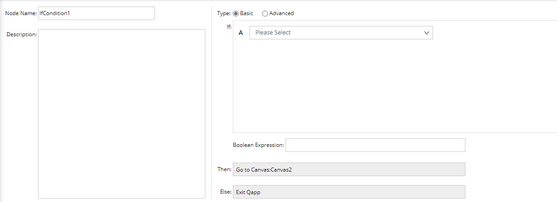

4.Click the IF node in the workflow to configure the detailed settings.
1)Enter the name and a description of the node.
2)Specify the statement type of setting the conditions:
▪Basic — select the variables of table attributes from the drop-down list and set conditions.
Note: Only applicable to the Canvas node which has attributes in the Global Data Table nodes.
▪Advanced — enter the script manually. See Python scripting for reference.
