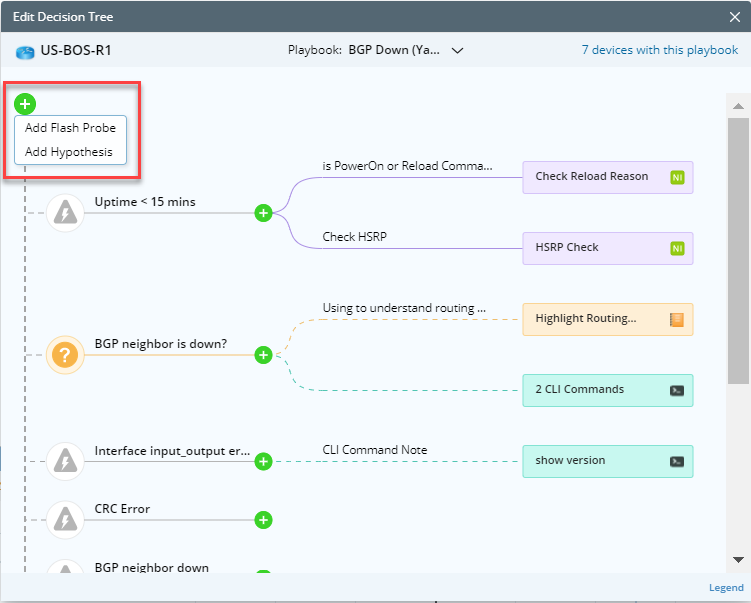

1.Click on the top left of the Edit Decision Tree window and select Add Flash Probe.

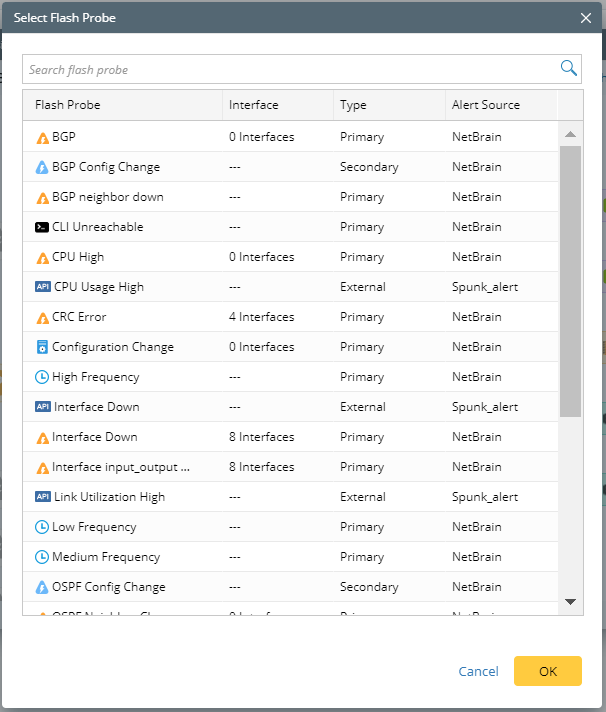

2.Select Flash Probe window will prompt, listing all the enabled Flash Probes that belong to the current device.

•In the list, the following information will be displayed for each Flash Probe:

oDisplay name of the Flash Probe

oInterface name or count.
Note: This information is available for interface Flash Probe only.

oFlash Probe type

oFlash Probe alert source

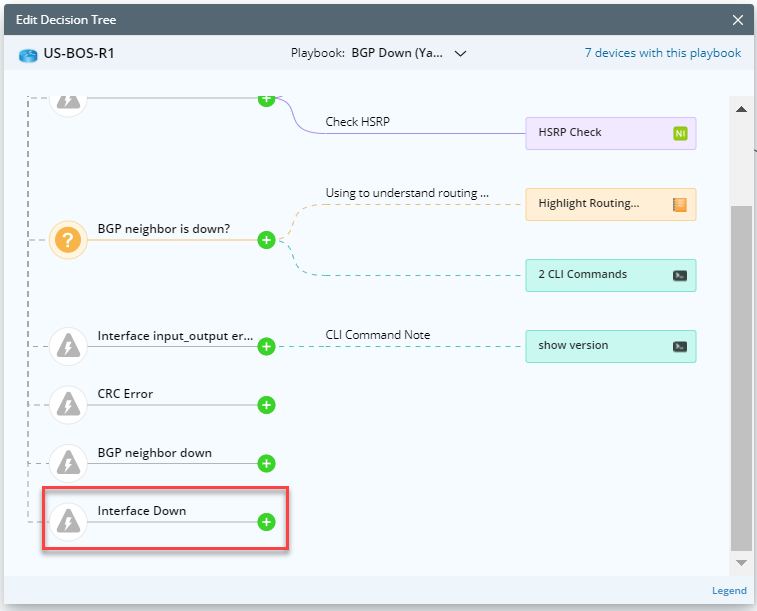

3.Once a Flash Probe is selected, it will be displayed in the Decision Tree immediately.
