Define Execution Setting

You can specify whether to check the network state against the Intent or create a map for the Intent.

1. Select the Execution mode:



• Execute Intent: Only execute NI, but not deliver the intent map. The Diagnosis will be available for the manual Trigger NetBrain Diagnosis (in the Integrated IT system and Incident Portal)
•  Deliver Intent Map: Only deliver the intent map, but not the NI result. The Diagnosis will be available for the manual Trigger NetBrain Map (in the Integrated IT system and Incident Portal).
• Both: Execute intent and deliver intent map.

2. Select the Intent Execution Setting: define how the results are displayed in the Incident Portal.



• Set Incident Device after Execution:

• Include All Intent Devices: Set the incident device(s) to include all Network Intent devices.
• Include Intent Device with Alert Status Code: Set the incident device(s) to include only the Network Intent Devices with the alert status codes.

• Create Incident Message by Status Code:  This will create an Incident message with the status code.

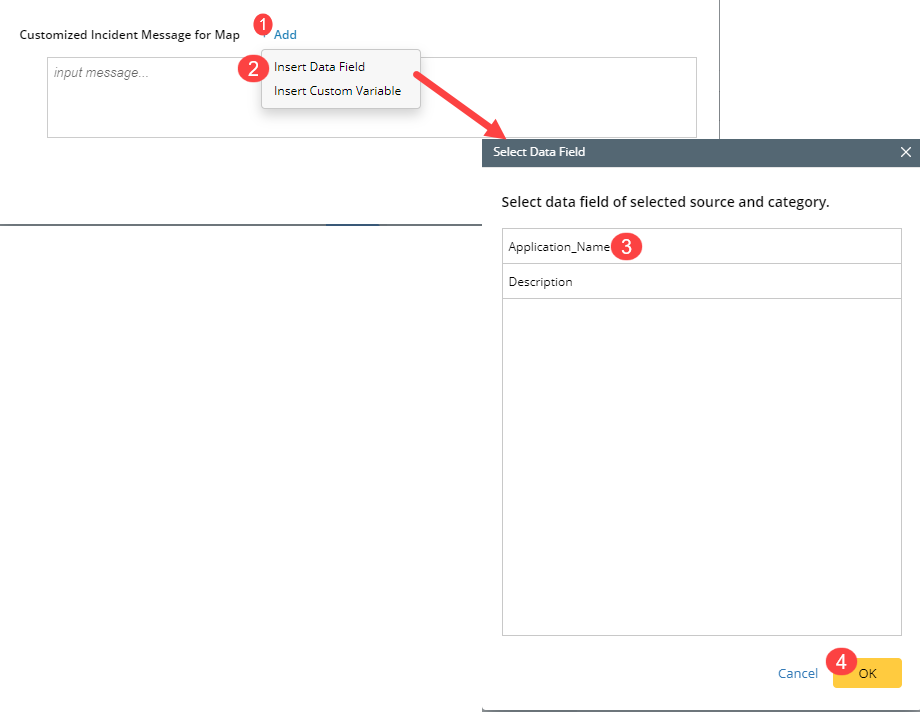

3. Customized Incident Message for Map. For example, View devices.
   You can also insert the data field or custom variable defined in the incident type.
   1. Click +Add.
      • Select Insert Data Field> Select the desired data field> Click OK.

      • Select Insert Custom Variable> Select the desired custom variable> Click OK.
4. Click OK to save the settings.
