Browse Network Objects and Context Map

The system can support various types of networks and provides built-in views for them.

• Visualize Physical Networks
• Visualize Big Switch Networks
• Visualize Meraki Networks
• Visualize Software-Defined Networks
  • Visualize Cisco ACI Networks
  • Visualize VMware vCenter Networks
  • Visualize VMware NSX-V Networks
• Visualize Public Cloud Networks
  • Visualize GCP Network
  • Visualize AWS Network
  • Visualize Azure Network

Example: View the context maps of a firewall in a traditional network.

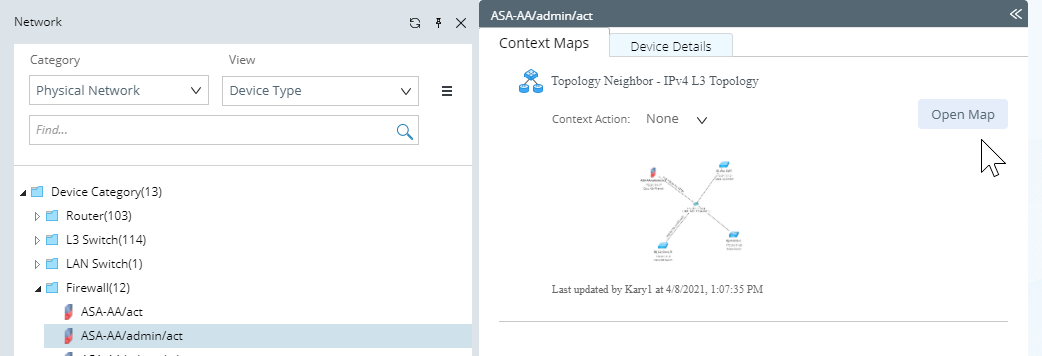

1. Click Network in the taskbar. The Network pane is used to manage, organize and provide various views for network resources discovered from traditional networks and software-defined networks.
2. In the Network pane, select Physical Network from the drop-down list and then select Device Type.
3. Expand the Firewall folder and select a specific firewall.
4. On the Context Maps tab, click Open Map to display the topology on a map.

5. Click the Node Details tab to view its property and interface details of the firewall.
