Manage ADTs Associated with Current Intent

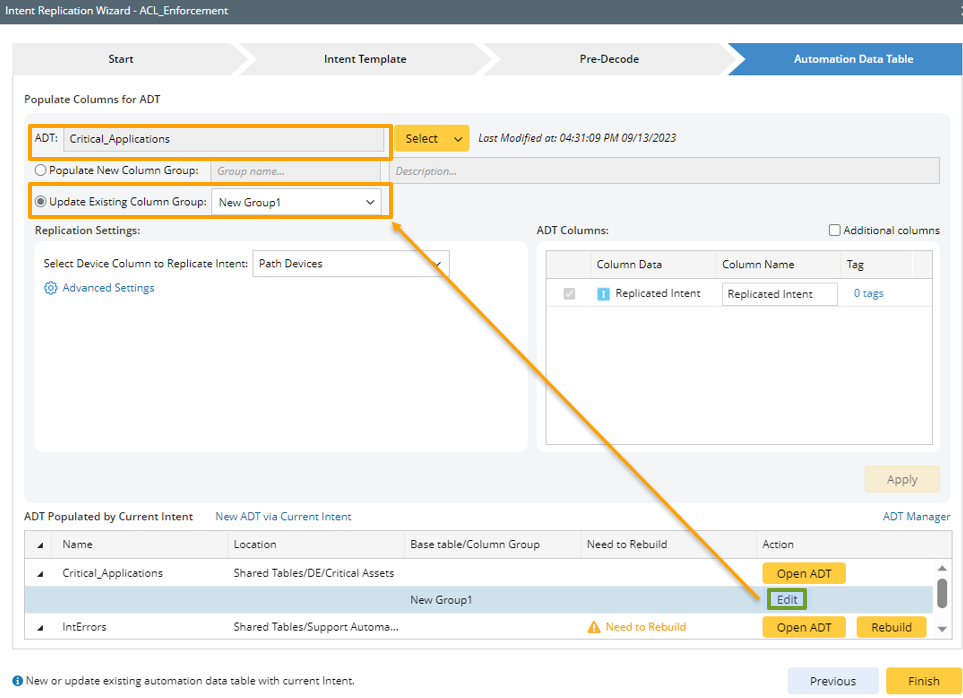

The ADTs associated with the current intent template are organized in the form of Table Node Tree in the ADT Populated by Current Intent area.


• For an ADT entry in the table, the following operations can be performed in the Action Column:

• Rebuild: Manually update the ADT data if the ADT has “Need to Rebuild” tag. After clicking this menu, the system will automatically rebuild all columns requiring rebuilding of the current ADT. A message will pop out to inform you of the progress.


• Open ADT: Open the ADT manager, and the related ADT entry is highlighted in ADT Manager.

• For a column group entry in the table, you can hover over a column group and click Edit to modify this column group in the area above in this tab. After clicking Edit, the settings in the area above are automatically set as follows.
