Define Whole Table-based Diagnosis

The Whole Table-based Diagnosis can be used in the following two scenarios:

• Compare the current table with its last value to detect changes.
• Compare the current table with its baseline value to detect changes.

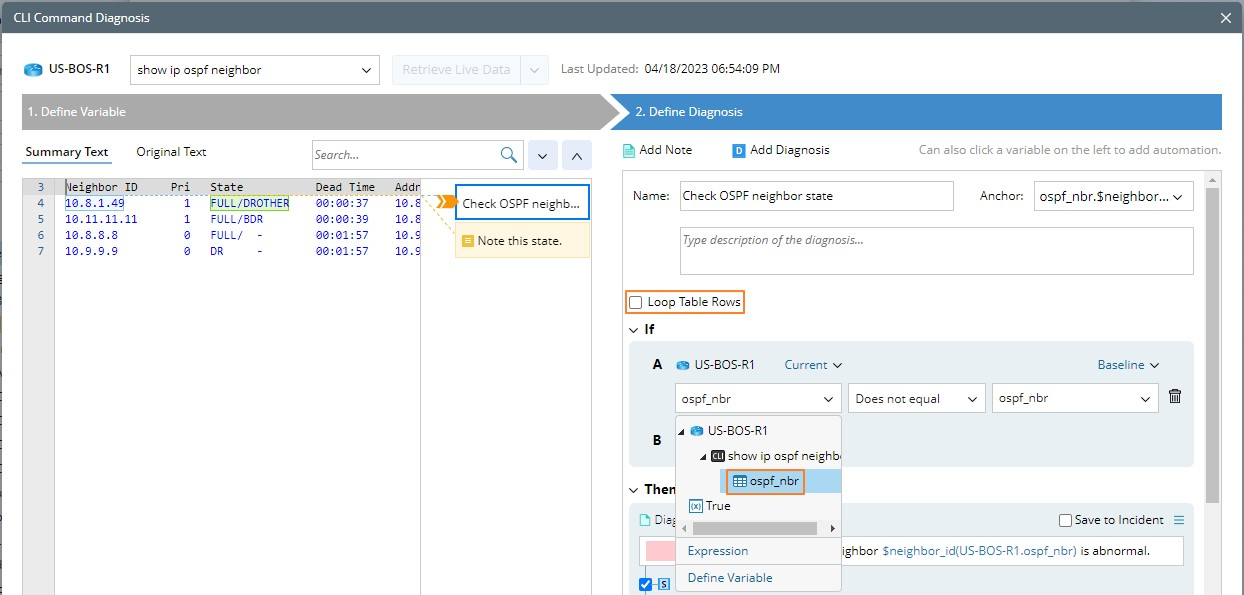

1. In the diagnosis, select a table to define the condition to achieve the whole table-based diagnosis when the Loop Table Rows option is not enabled:

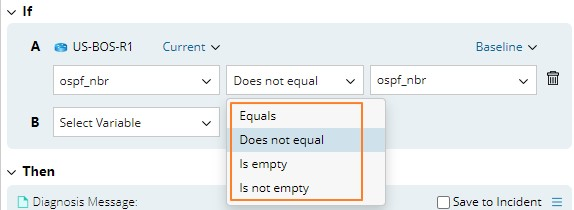

2. Select one of the four supported operators by the table object: Equals, Does not equal, Is empty, and Is not empty.



When you select Equals or Does not equal as an operator, you can only select the same table on both sides of the operator, and then choose different sources.

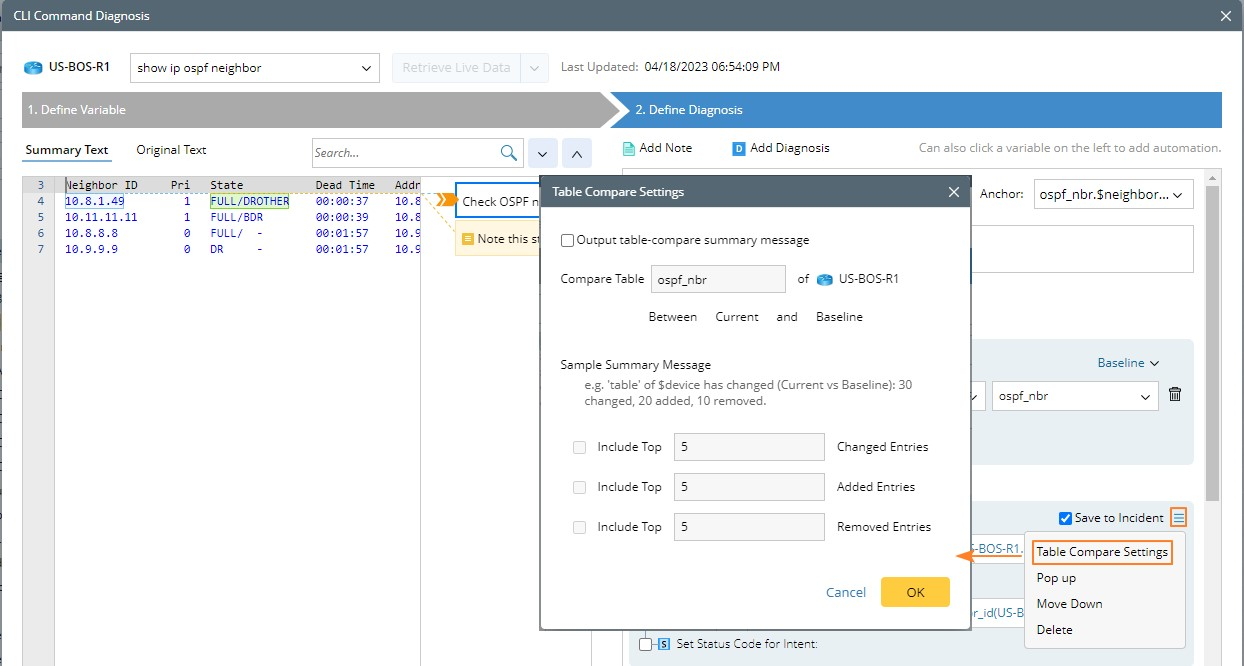

3. You can defien the table compare settings (to diagnosis message and status code). Set the changed detail message to be outputted in the Table Compare Settings dialog.



   Note: The Table Compare Settings option is only available for whole table-based diagnosis, and if you do not set the table key for the table object, a dialog will pop up to remind you when saving the NI.

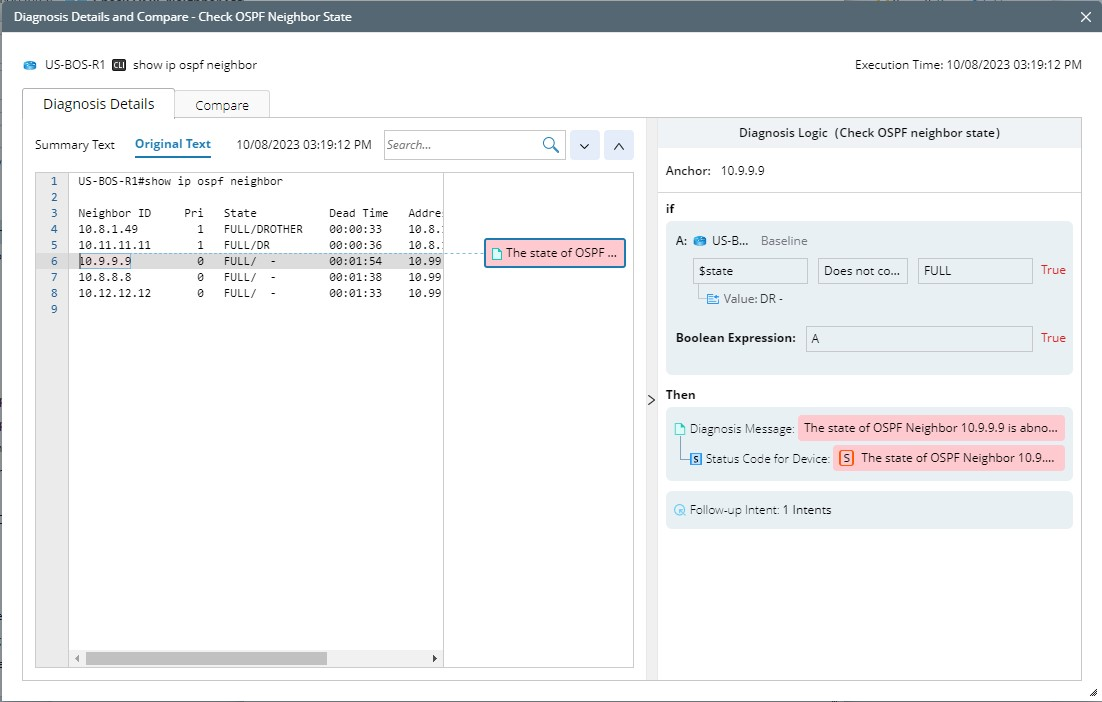

4. Execute the intent and click the status code summary message to open the Diagnosis Details and Compare pane to view the details.
