R12 Publication-2025July16
Customize Network Pane
In the Network pane, you can customize the available views and the nodes that can be displayed.
Example: Disable the ACI Network Centric View and exclude EPG from the Application Centric View.

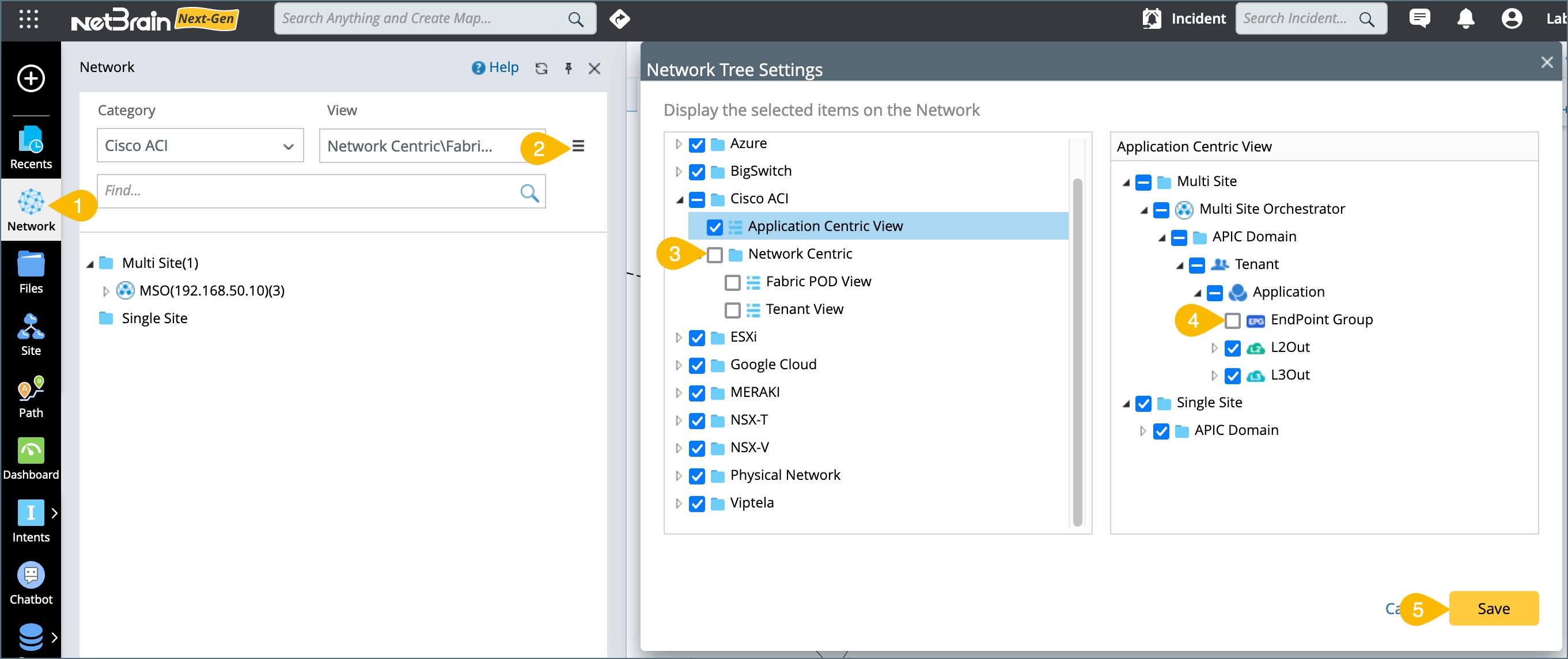

- Click Network on the taskbar.
-
In the Network pane, click the
icon and select Settings.
- In the Network Settings dialog, uncheck the Network Centric option.
-
Select the Application Centric View option, and uncheck the EndPoint Group options.
-
Click Save to apply the above settings.
