Viewing Triggered Intent Results

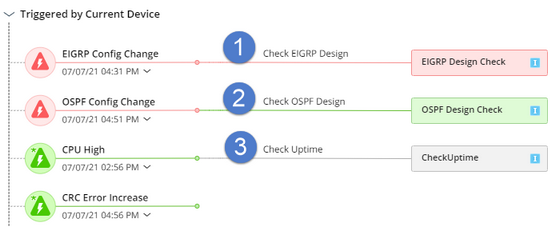

In the Execution Tree, each Flash Probe connects to multiple Triggered Intents, meaning that the respective intents will be triggered when the associated Flash Probe generates the respective flash alert.
Different color codes are used to differentiate various types of execution results:
| # | UI Description | Meaning |
| 1 | Rectangle and connecting line in red | The error status code is generated by the Network Intent. |
| 2 | Rectangle and connecting line in green | The execution result for the Network Intent is normal. |
| 3 | Rectangle and connecting line in grey | The status of Network Intent is unknown. Either it was not executed during the selected time range, or no status code defined to identify the status. |
When you click and open the specific triggered automation, the Network Intent window in view mode will appear on screen.
 |
Tip: To execute Network Intent interactively, you can add NI to the current Runbook by clicking Add to Current Runbook. |
