Search for Network Segments

Follow the steps below to search for the Network Segments:

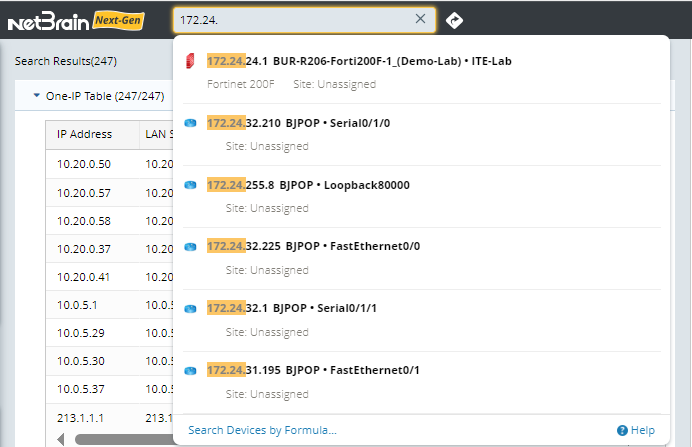

1. Enter a subnet in the search bar. For instance, 172.24.
2. Press Enter. The devices with interfaces in this segment are listed in the search results.


3. Click the hyperlink in the network segment result to preview the topology of the network segment and the devices in the segment.

   Tip: To draw the network segment icon on a map, point to a network segment result and click Map. Moreover, right-click the network segment icon on the map for more operations.

4. Click Add to Current Map or Open in New Map to map the previewed topology.
