Customize Network Pane

In the Network pane, you can customize the available views and the nodes that can be displayed.

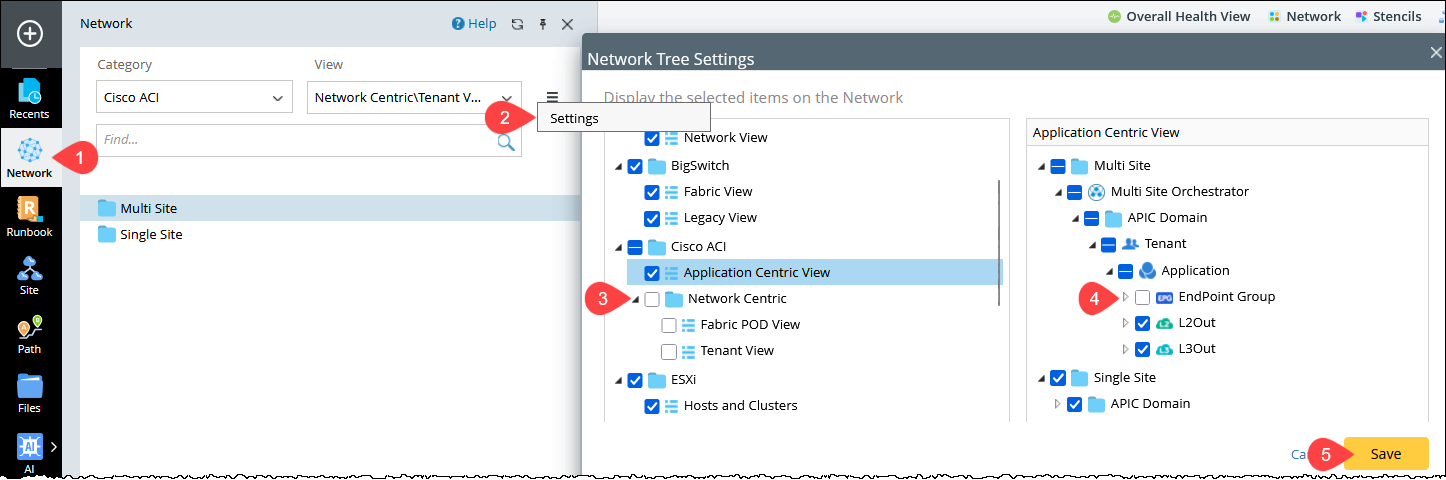

Example: Disable the ACI Network Centric View and exclude the EndPoint Group from the Application Centric View.

  1. In the NetBrain desktop sidebar, open Network.
  2. In the Network pane, click the icon and select Settings.
  3. In the Network Settings dialog, uncheck the Network Centric checkbox.
  4. Select the Application Centric View option, and uncheck the EndPoint Group checkbox.
  5. Click Save to apply the above settings.
