View Intent Result on Map

  1. Enter the NI View Mode and click Output Map to view the intent result on the current map.

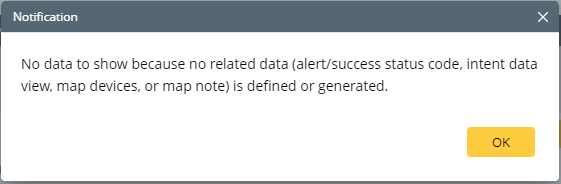

    Information Note: If there is no data defined in the intent, the following notification will be displayed and no map will be open.

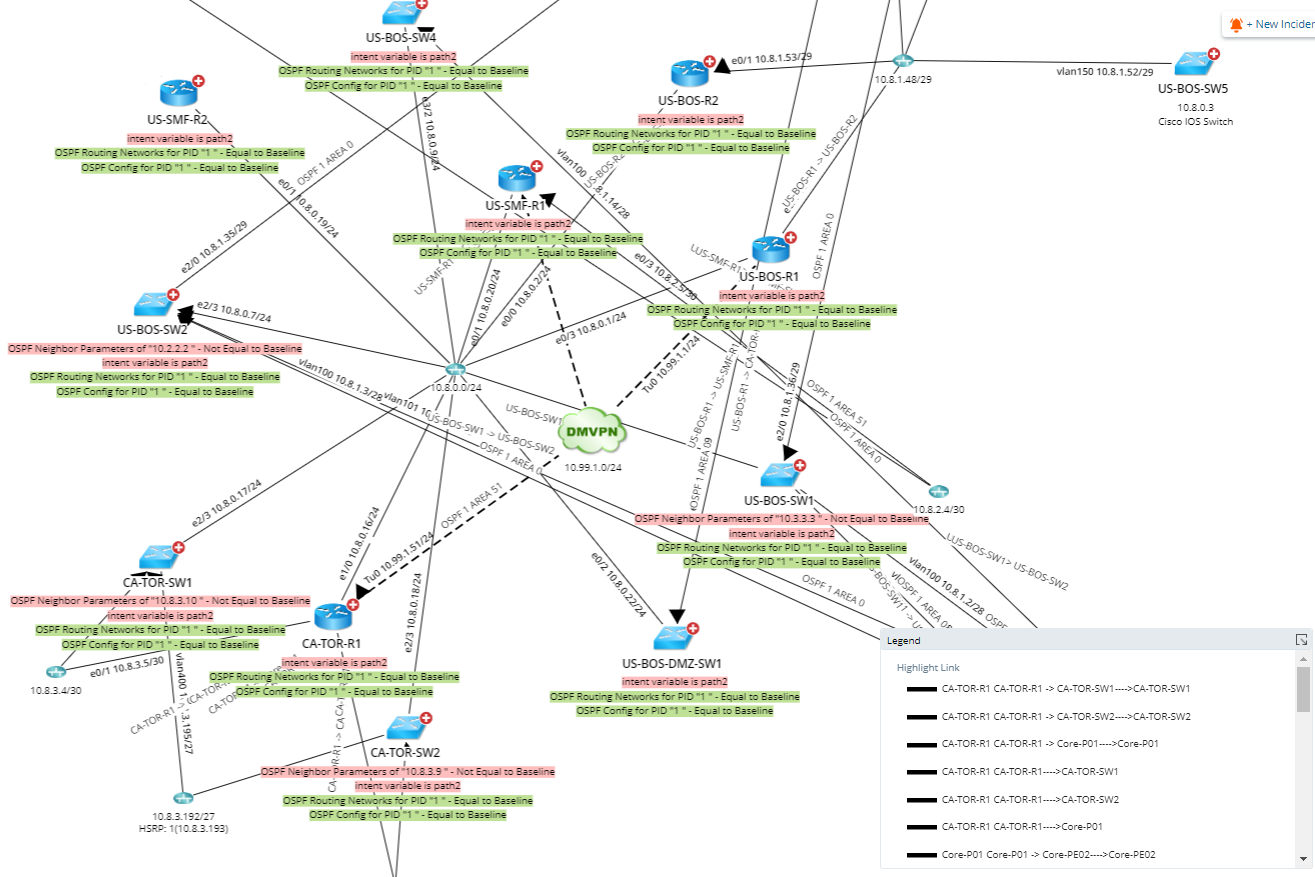

  2. You can view all the related devices and information (such as intent data view and diagnosis message) on the map.

  3. Click the diagnosis message to open the Diagnosis Details and Compare pane for more inforamation.

  4. You can choose to only show alert or success status code in the intent data view.


Clickable Status Code Only Map Device with Alert or Success Status Code
