Integrate with Third-party Tools for SPOG

The capability to visualize data from 3^rd-party cloud management tools enables NetworkBrain dynamic map to render a complete view of your cloud infrastructures. The integration with 3^rd-party cloud management tools is highly customizable, which means NetworkBrain can be integrated with any cloud management tools to suit your specific needs. For more details, refer to SPOG.

• Datadog – AWS Monitoring Metrics

The following data view demonstrates the integration with Datadog - the metrics are retrieved from the Datadog agents installed on EC2 instances. NetworkBrain can retrieve and demonstrate the following types of metrics through the data view template:

• system.cpu.user (5 min aveg - double)
• system.mem.pct_usable (5 min aveg - double)
• system.uptime (The last non-empty value of the 5 min - int)
• system.net.packets_out.error (5 min aveg - int)
• system.disk.free (5 min aveg - int)
• system.io.r_s (5 min aveg - int)
• system.net.packets_in.error (5 min aveg - int)

NetworkBrain also provides a link to Datadog, so you can easily switch to Datadog to explore more details.

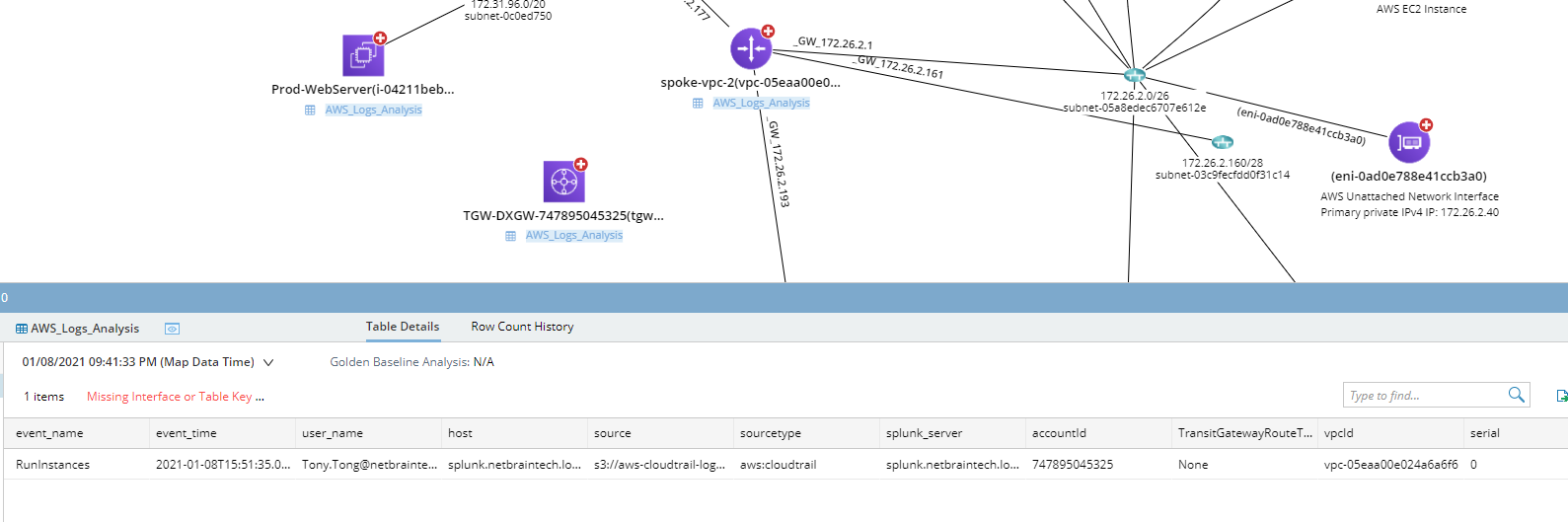

• Splunk – VPC Security Group Check Log

AWS CloudTrail is a service that allows you to log, continuously monitor, and retain account activity related to actions across your AWS infrastructure. The integration with Spunk allows you to view the change log of security groups/network ACL and VPCs during a specific period.
