Defining the Benchmark After Node

The Benchmark After node is used to collect network data after the change is implemented, thus verifying if the change has been deployed successfully. Additionally, the benchmark results will be compared with the data collected in the Benchmark Before node.

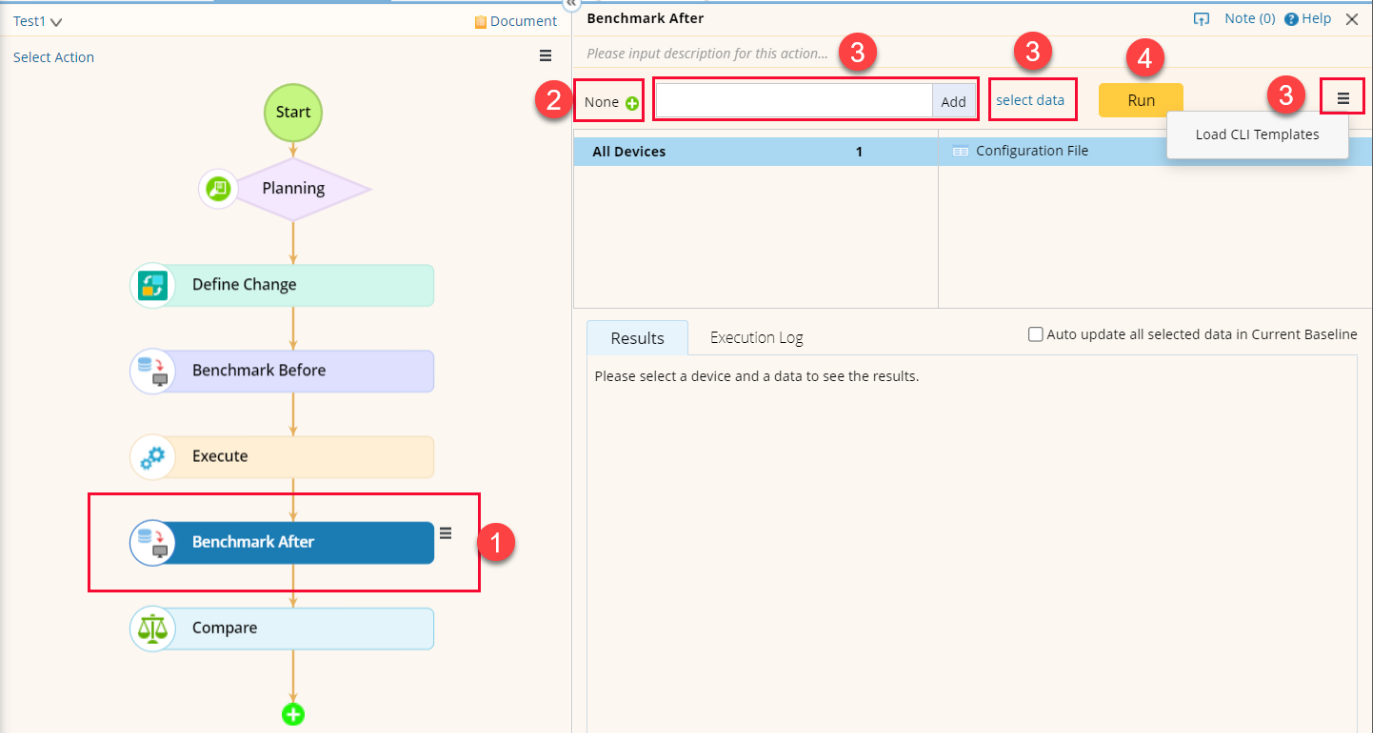

1. Select the Benchmark After node in the runbook.
2. In the Benchmark After pane, define the following settings:
   1. Click the the icon to select the target devices for the benchmark.
   2. Add CLI commands using either way.


• Manually enter a CLI command and click Add. You can add multiple commands

• Click the  icon to select Load CLI Templates to batch add commands  .
• Click select data to select the data types that you want to retrieve.
