Color Code in ADT and ADT View

In ADT and ADT View, color code is designed for intent column (Whether intent column displays status code is configured in Table Settings), Device Status Code column, Intent Status Code column, 'Status code summary' column and 'Result Summary' column to imply the diagnosis result status of intent execution.

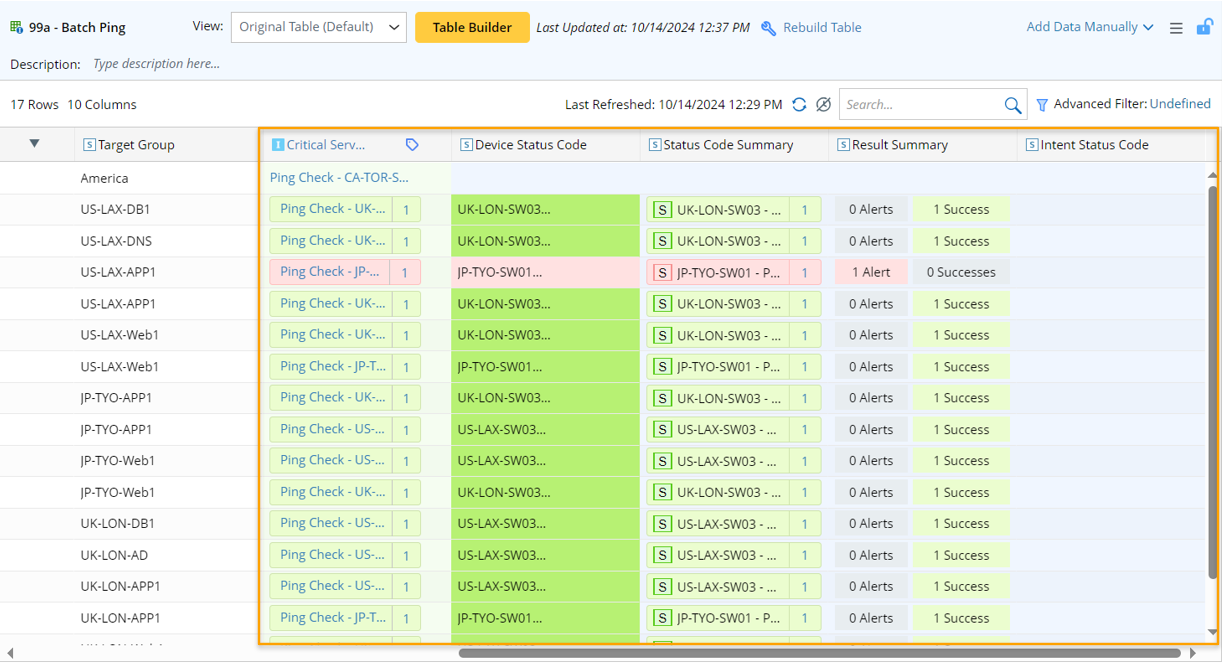

  • Color code in ADT:

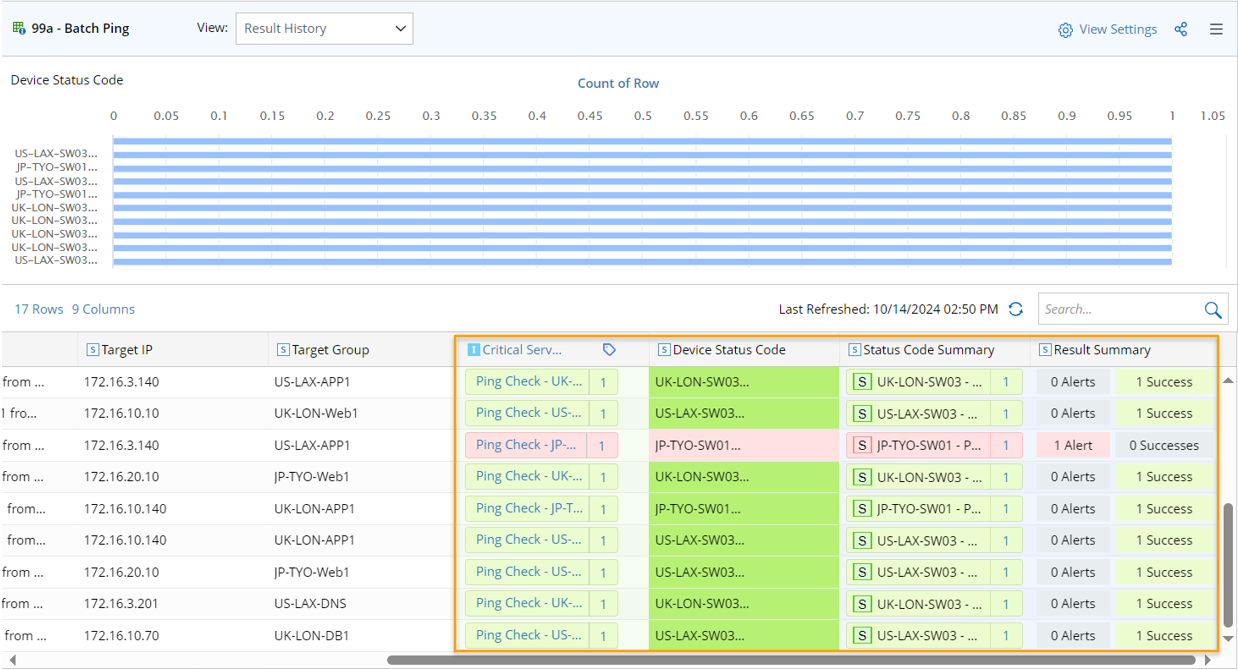

  • Color code in ADT view:
Information Note: The display of the intent column in ADT view is the same as defined in the original ADT.
