Apply a Static Data View

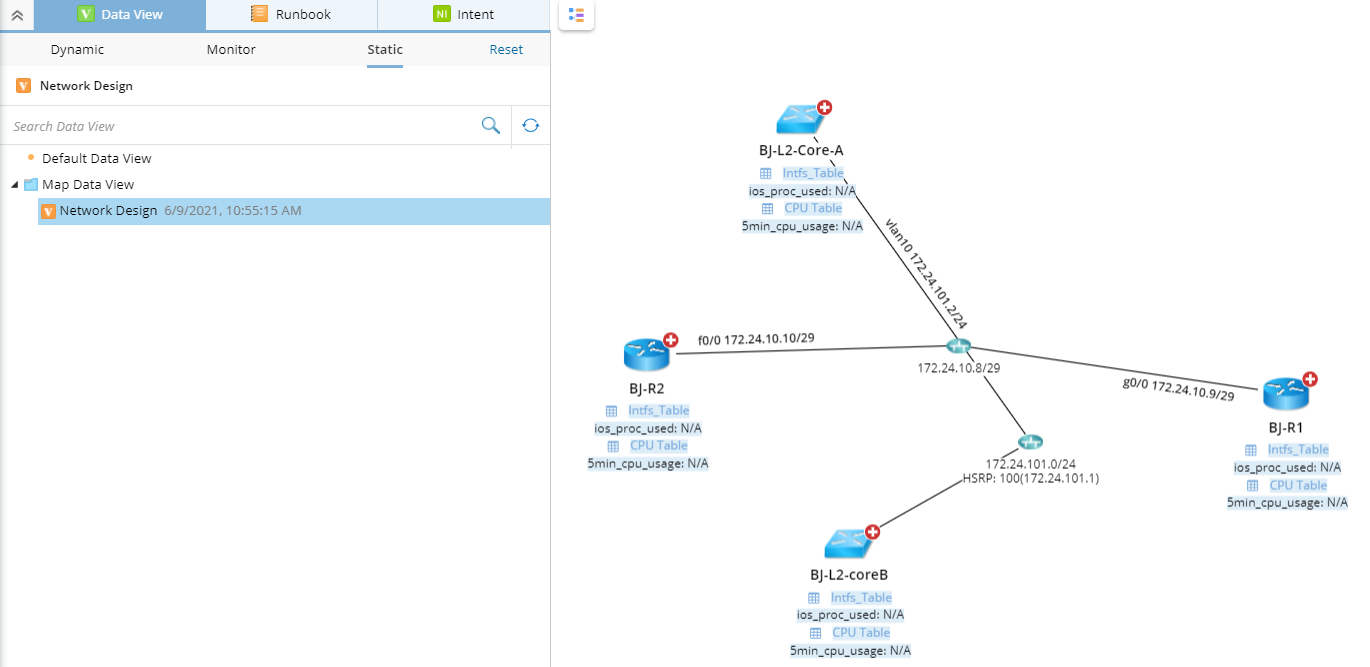

All devices on a map page are displayed in the default data view. You can apply a static data view to decode network design.

1. Open a map page, and click the Static tab in the Data View pane.

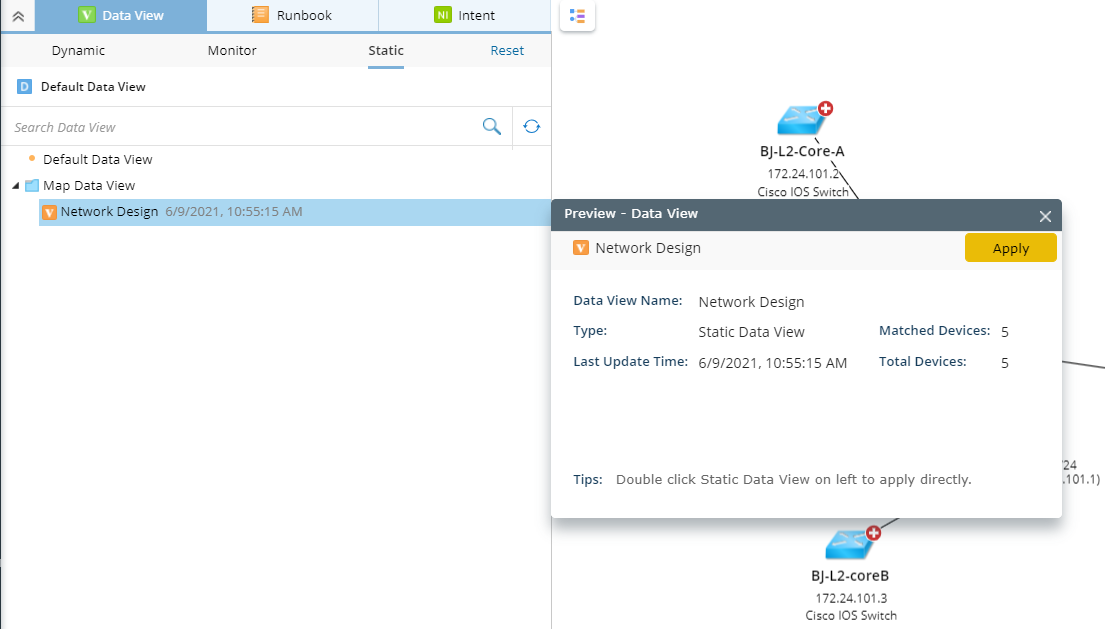

2. Click Network Design to preview it.

3. Click Apply.



   Tip:  You can also directly double-click the target data view to apply it to the map page.

   Tip: To clear applied data views, right-click the blank area on the map and select Data View > Clear All from the drop-down menu.
