View VLAN Group for a specific device

VLAN Group is an L2 Broadcast Domain, including L3 IP Interface, L2 Switchport, and End Point (End System and MAC Device). It is often associated with a business unit, for example, Dev VLAN, QA VLAN, etc. The IP addresses in a VLAN Group should not be duplicated except HA(High Availability) and FHRP(First Hop Redundancy Protocol).

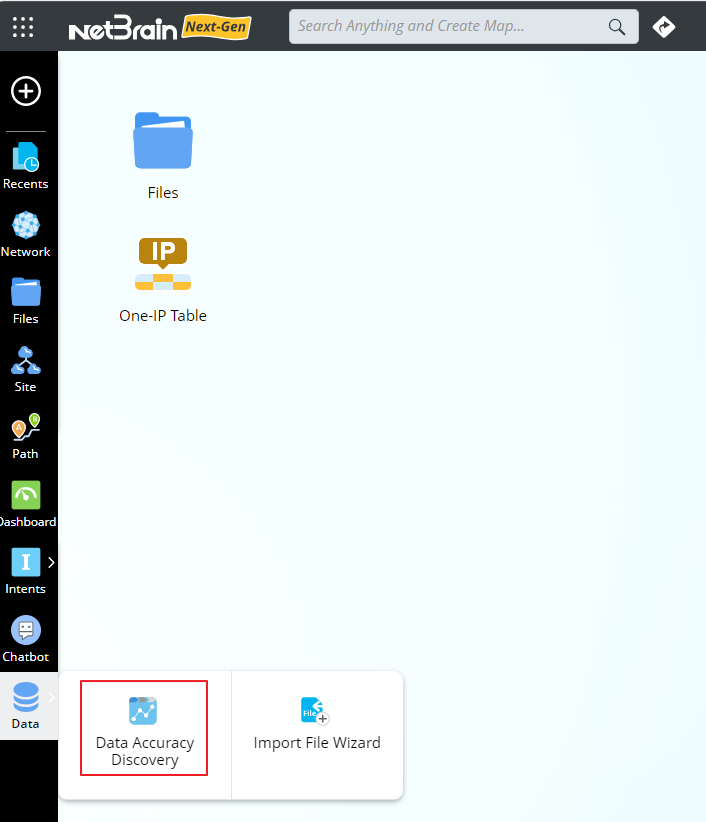

  1. Click Data > Data Accuracy Discovery on the left Menu Bar from the Desktop.

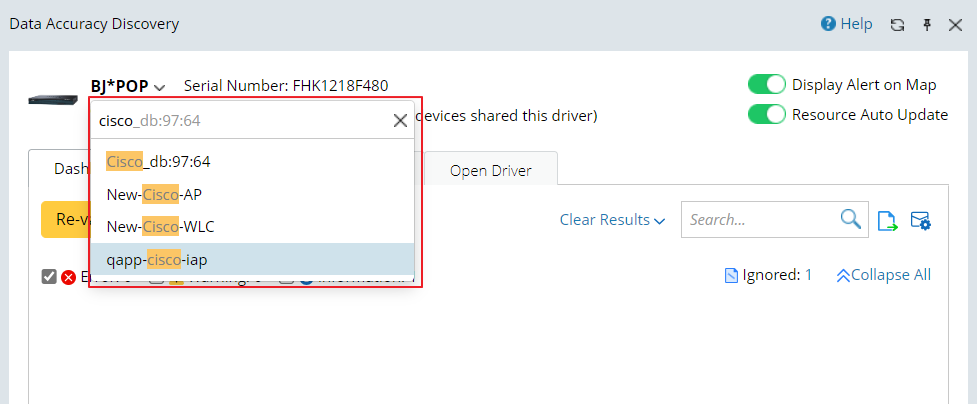

  2. Click  after the Device Name, and search for the device you want to view.

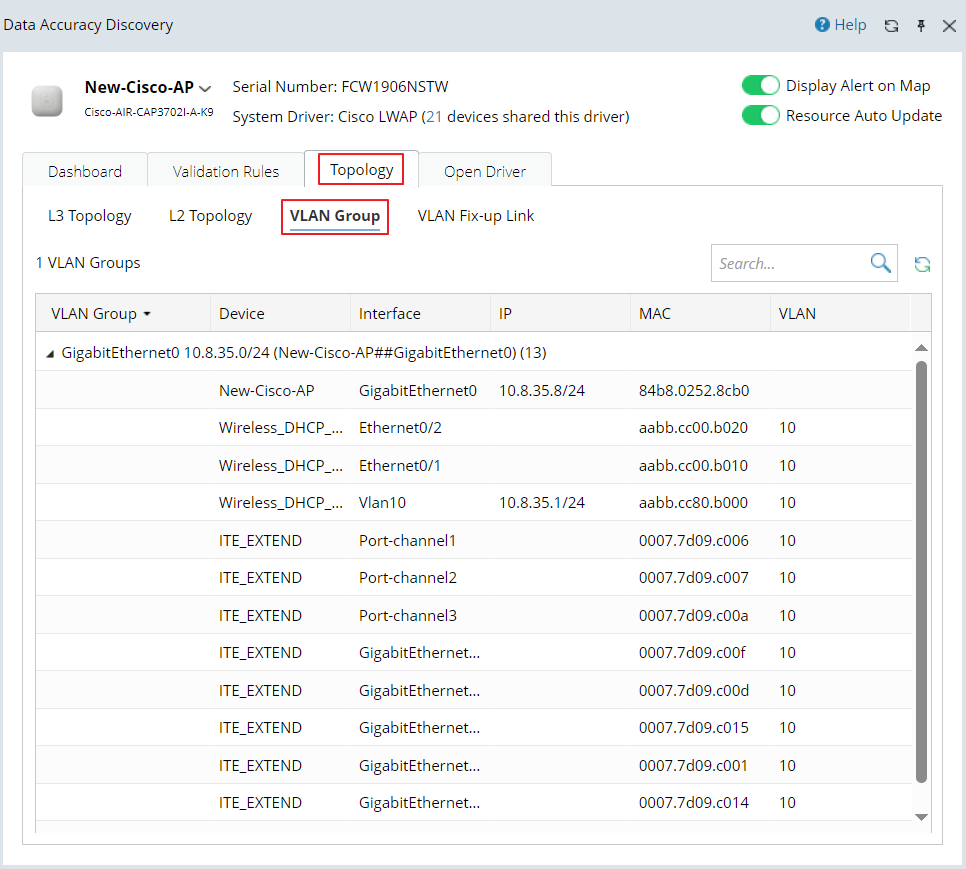

  3. Click the Topology tab and then click VLAN Group.
