View Physical Network by Routing Protocol

For BGP protocol, the protocol type: Protocol Name + AS Number

For other protocols, the protocol type: Protocol Name+ Process Number

To view the details and the context maps of a node, proceed with the following steps:

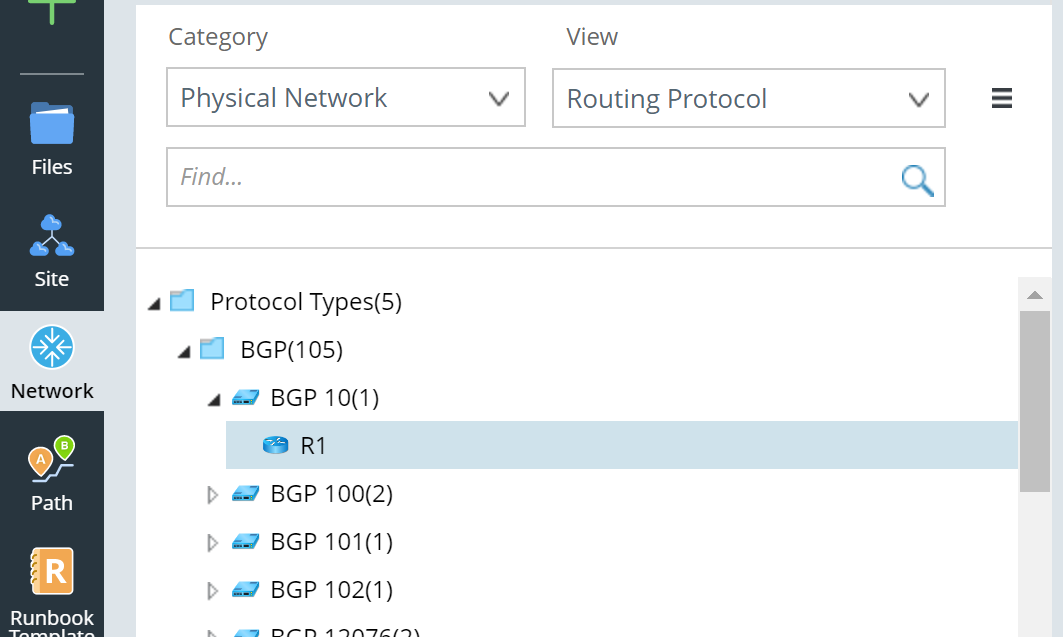

1. Select Network in the left pane of your NetBrain desktop.
2. In the Network pane, select Physical Network in the Category field.
3. In the View field, select Routing Protocol.
4. Expand the BGP node to view more information.



   Tip: The number next to each node indicates the number of its child nodes.

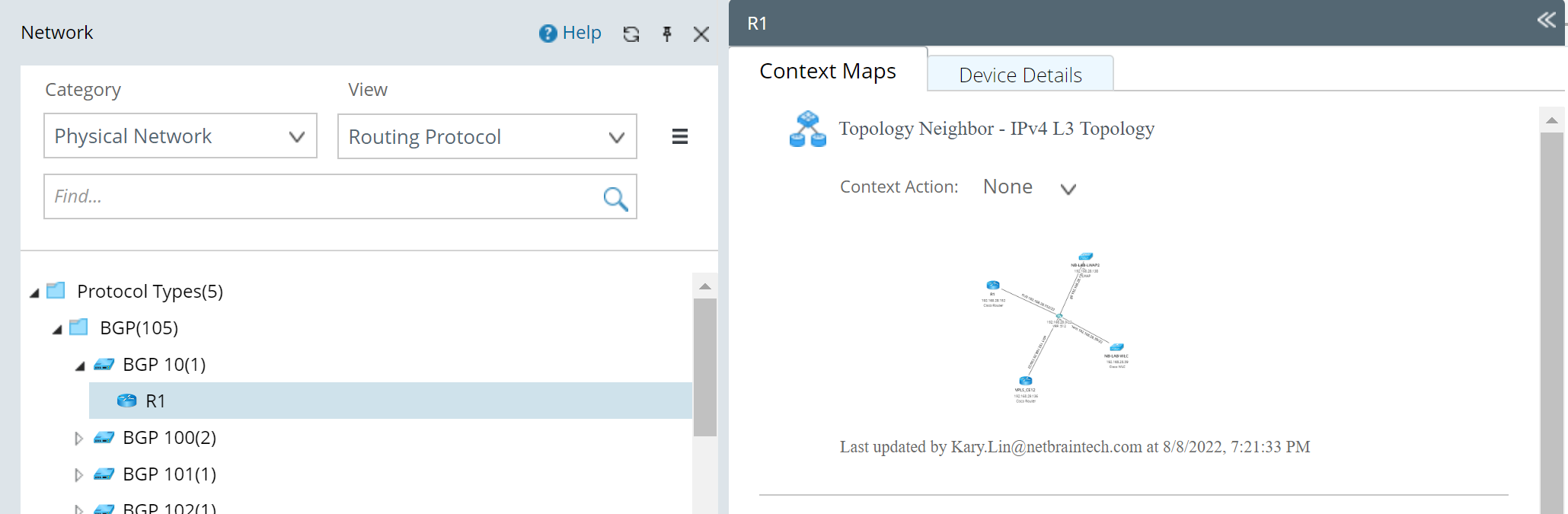

5. Select a node and the Context Maps tab to view its context maps. You can click Open Map to view the context map.


   Tip: The context maps display the L3 Topology or L2 Topology.



6. Click the Device Details pane to view the node’s detailed property, interface, and IP interfaces.
