View Physical Network by Device Type

Devices are categorized by the main device type. To view the details and the context maps of a node, proceed with the following steps:

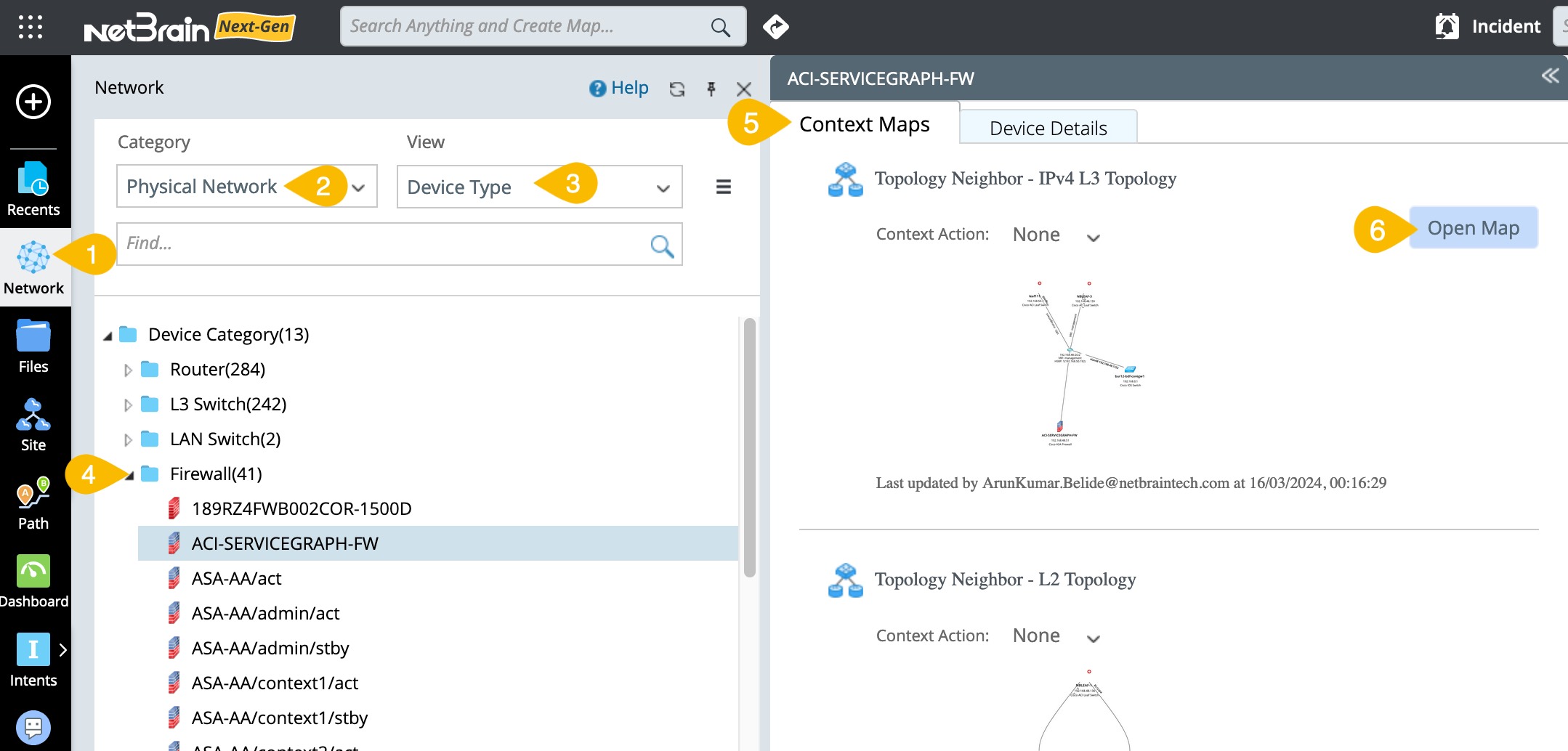

1. Select Network in the left pane of your NetBrain desktop.
2. In the Network pane, select Physical Network in the Category field.
3. In the View field, select Device Type.
4. Expand the Device Type node to view device information.


   Tip: The number next to each node indicates the number of its child nodes.

5. Select a node and the Context Maps tab to view its context maps.
6. Click Open Map to view the context map.



   Tip: The context maps display the L3 Topology or L2 Topology.

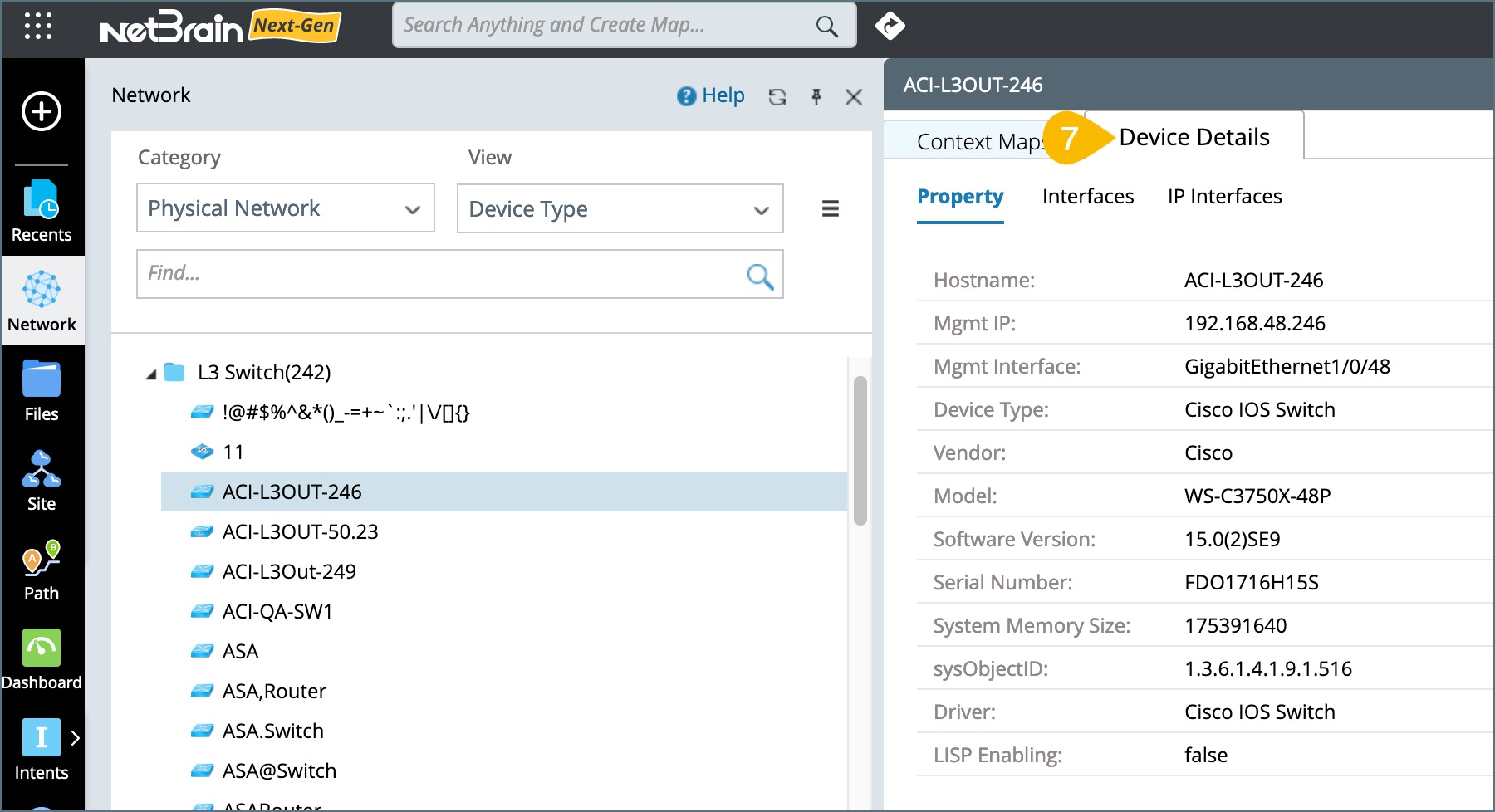

7. Click the Device Details pane to view the node’s detailed property, interface and IP interfaces.
