View L2 Topology for a specific device

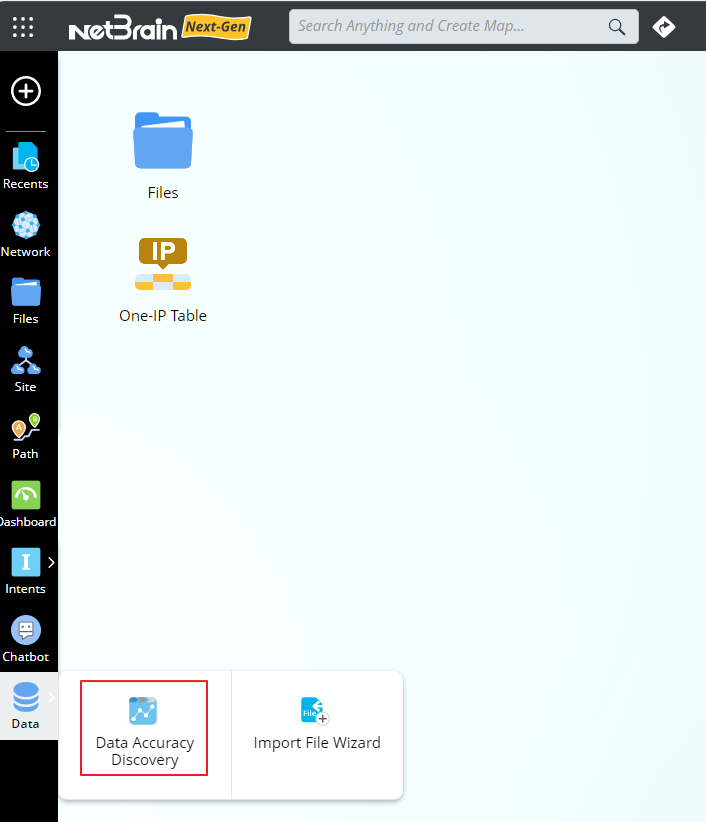

  1. Click Data > Data Accuracy Discovery on the left Menu Bar from the Desktop.

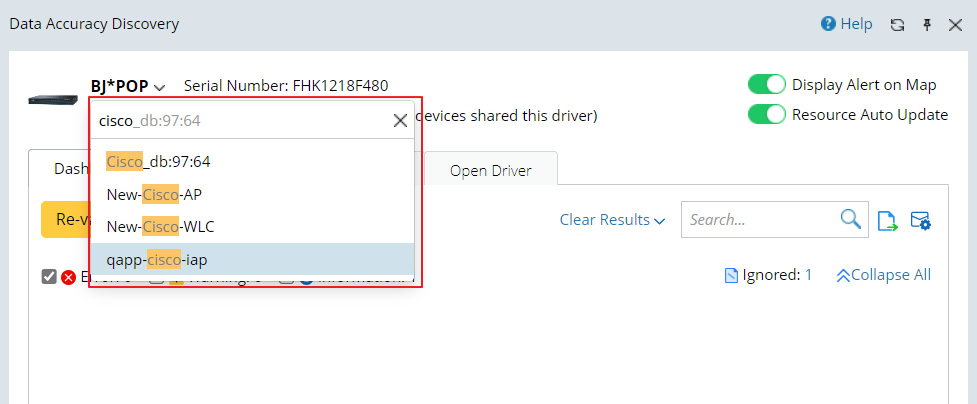

  2. Click  after the Device Name, and search for the device you want to view.

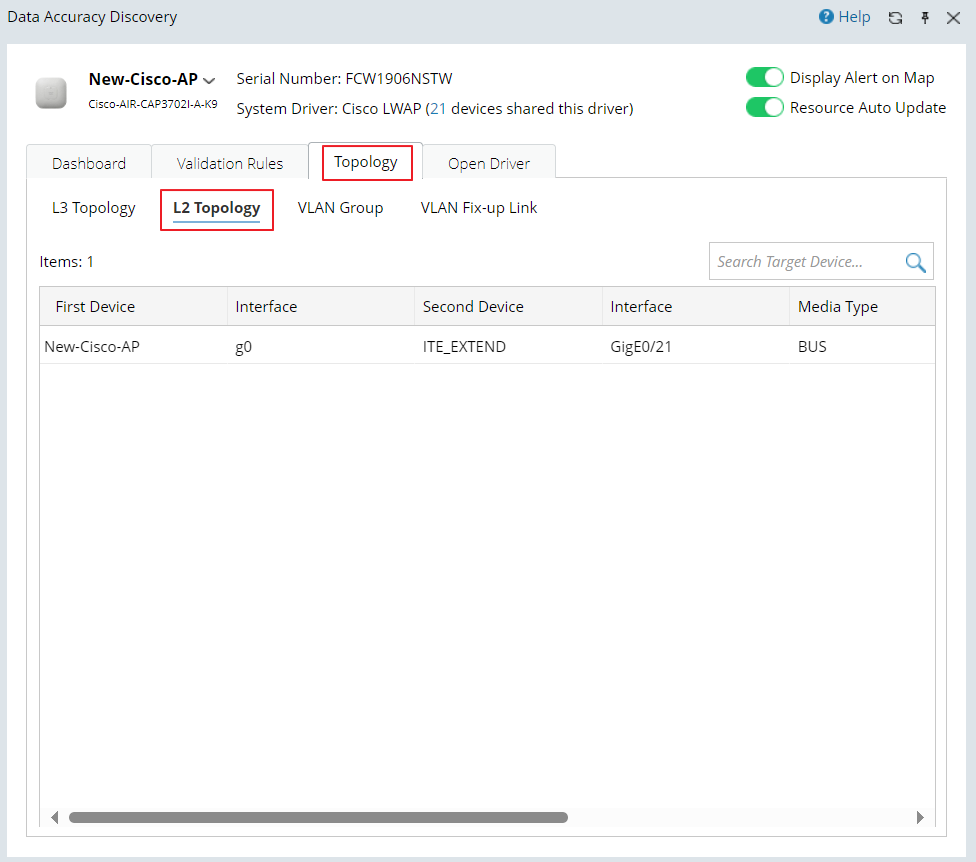

  3. Click the Topology tab and then click L2 Topology.
    Under the L2 Topology Tab, the table shows all the L2 Neighbors that belong to the current device.

    Information Note: For multi-ports connections, this table will display them via several port-to-port links.
