Discover Network Virtual Appliance

Network Virtual Appliance (NVA) can be loaded with any vendor's virtual machine (VM) images to support networking, security, and other functions. NetBrain supports visualizing the topology and path of GCP NVA after discovery and multi-source data merging.

To discover the Network Virtual Appliance (NVA), you need to:

• Discover the Virtual Machine with Cloud API
• Discover Legacy Device with CLI

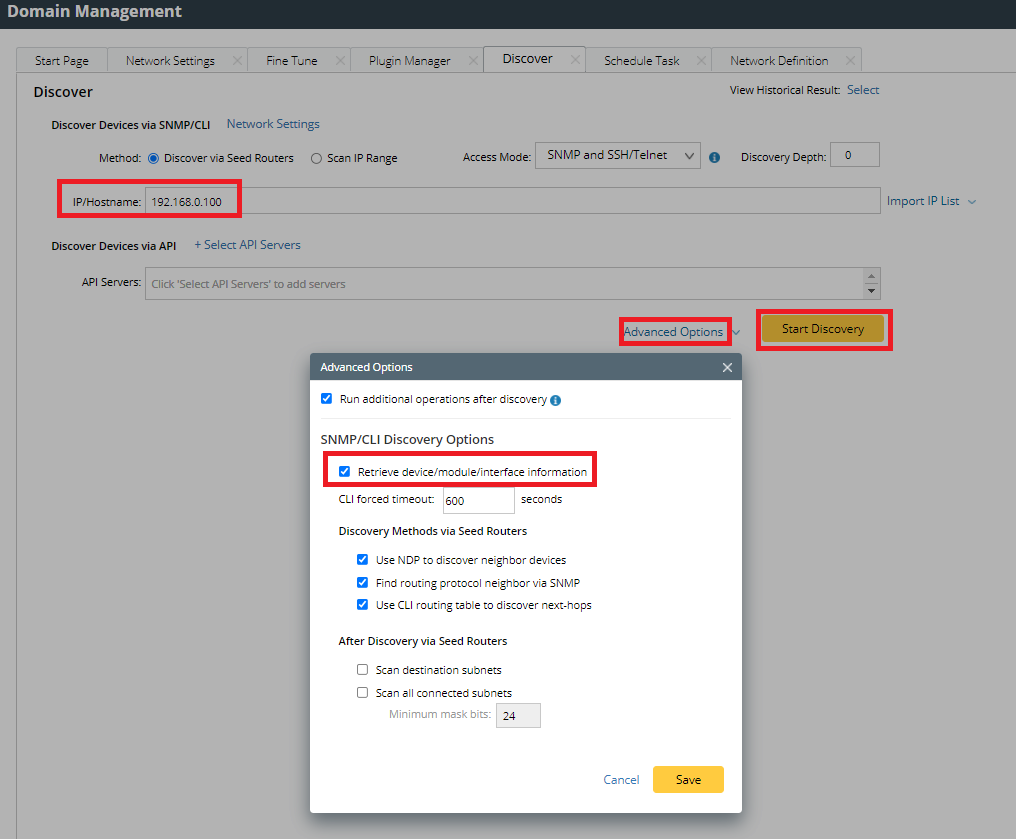

To perform the multi-source data merging properly via CLI discovery, go to the NetBrain Discover page, click the Advanced Options, and check Retrieve device/module/interface information.

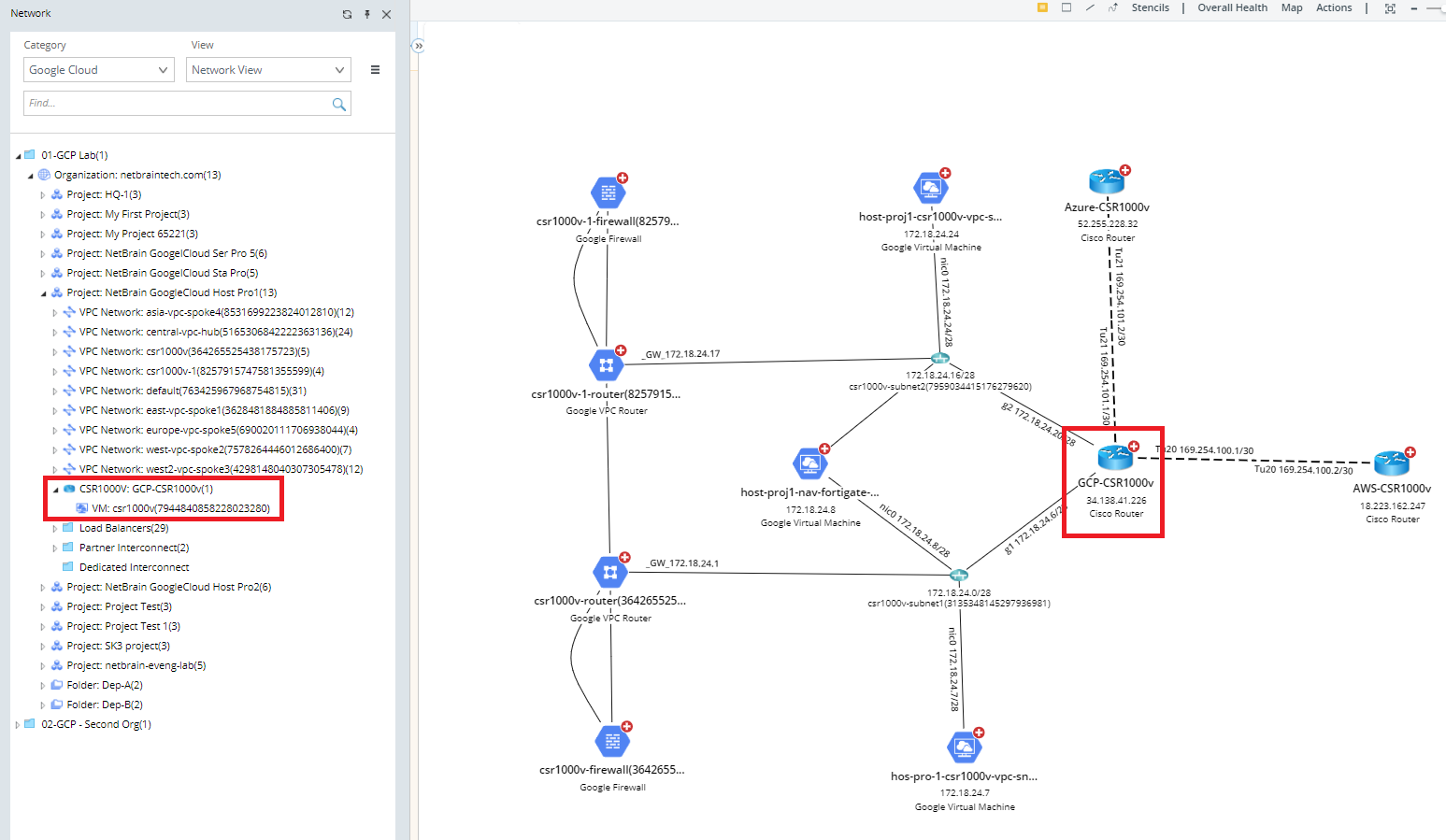

After the NVA multi-source data merging is finished, the GCP NVA device topology sample is shown below.
