Update ACI Data in NetBrain through Benchmark Automatically

Since the discovery only retrieves basic data of your ACI network, you need to execute a benchmark task to retrieve all data and build all components after the discovery, including topology, visual spaces and data views.

1. Click the Start Menu () in the upper-left corner of your NetBrain desktop and select Schedule Task from the drop-down menu.
2. On the Schedule Discovery/Benchmark tab, click Add Benchmark Task.
3. On the Frequency tab, define the task frequency.

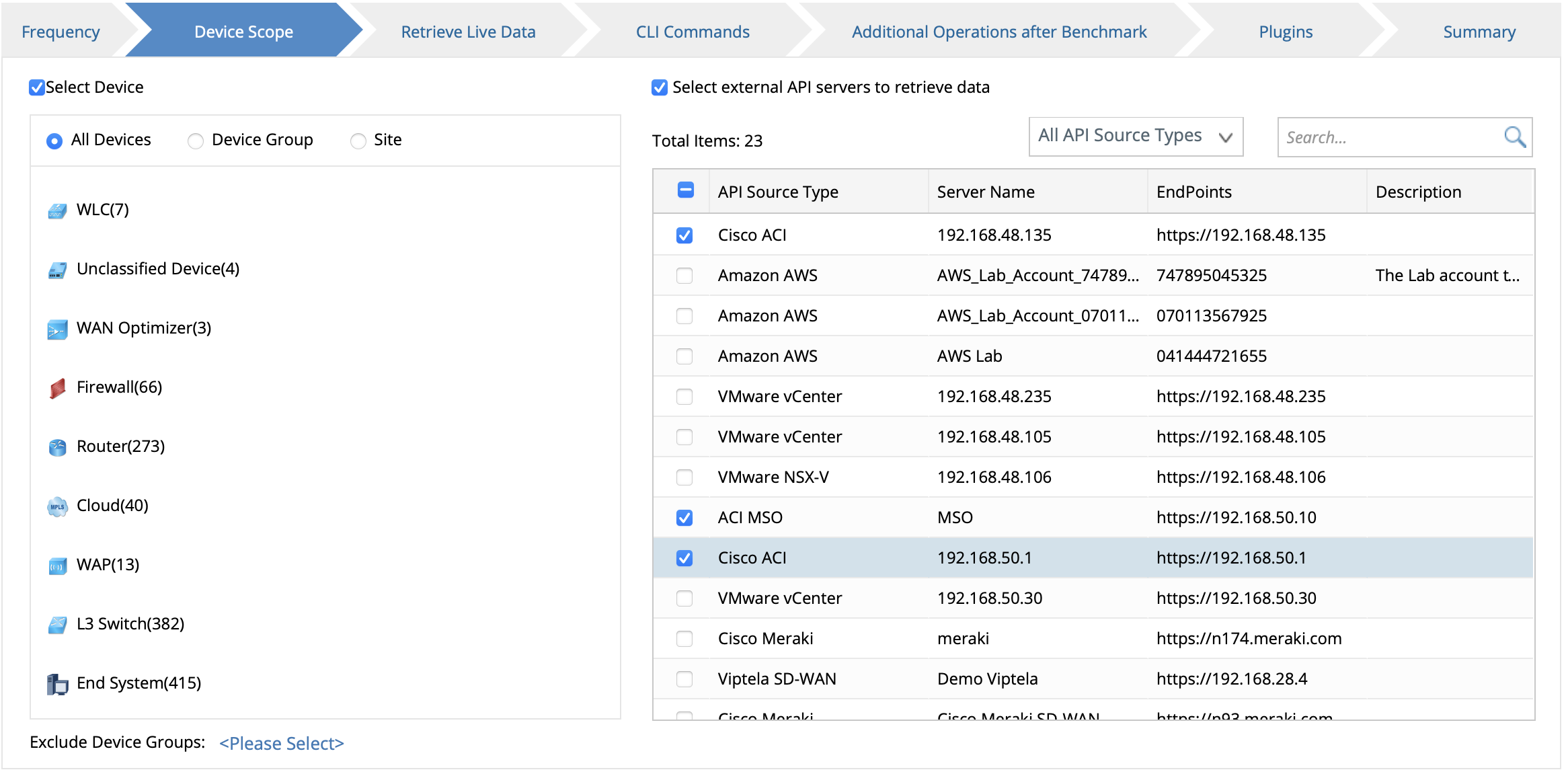

4. On the Device Scope tab, check the Select external API servers to retrieve data of SDN nodes check box and select related controllers.

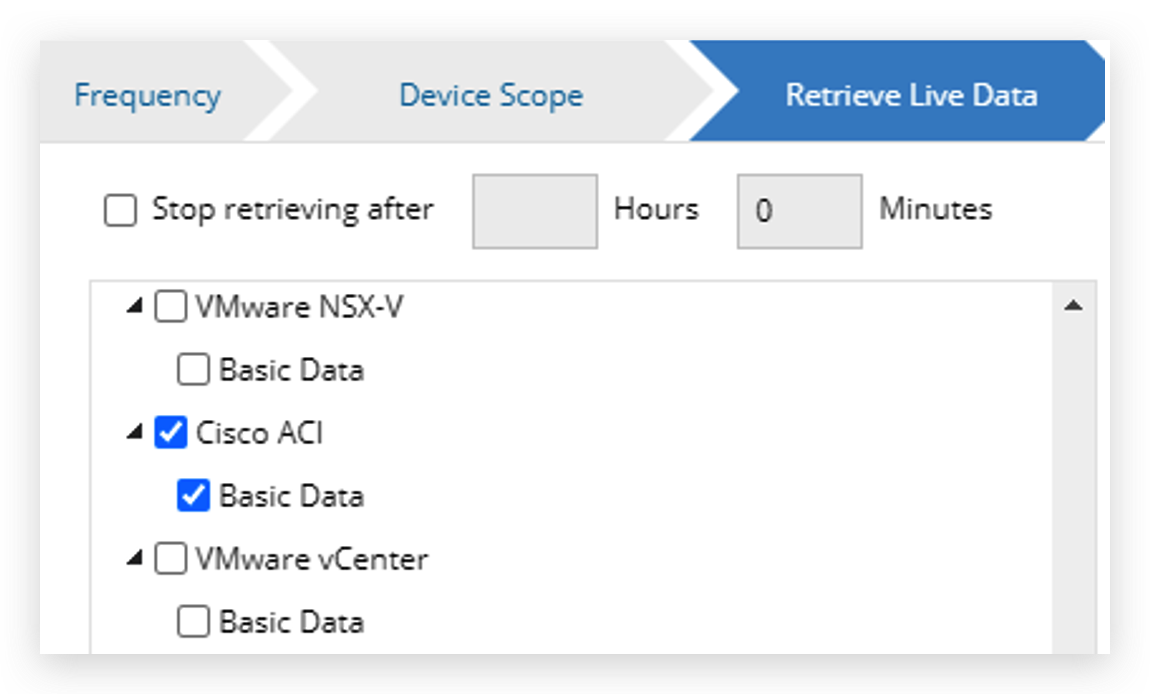

5. On the Retrieve Live Data tab, select the Cisco ACI check box.

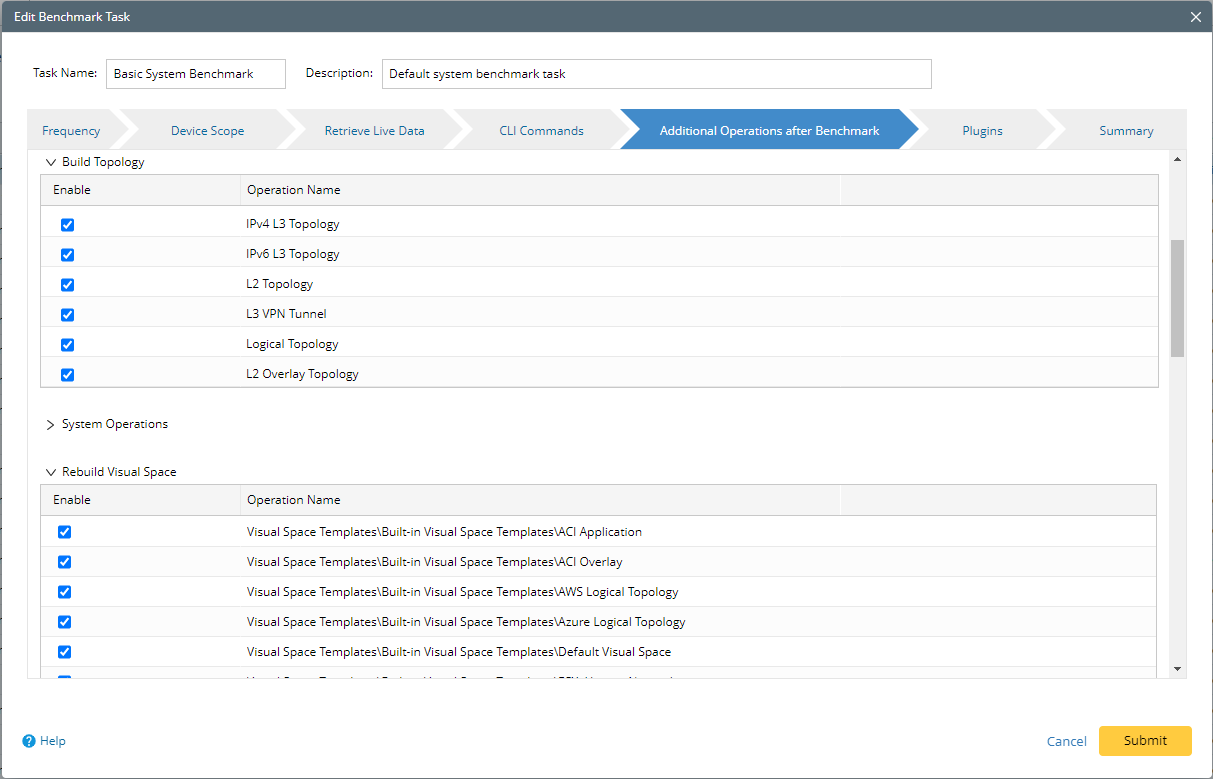

6. On the Additional Operation After Benchmark tab, select all the checkboxes in the Build Topology and Rebuild Visual Space areas.

7. Click Submit.
